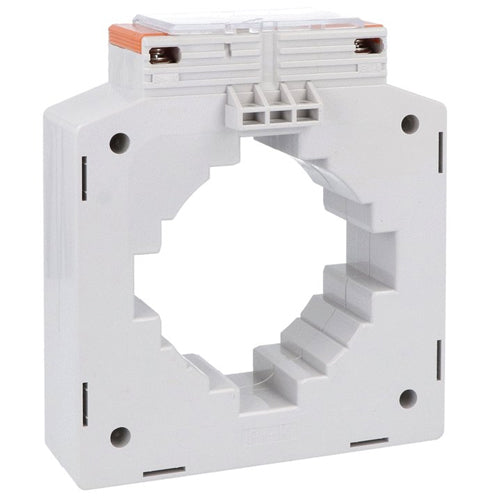

Lovato DM5TP1000, Current Transformer, Accuracy Solid-Core, For Ø85.5mm Cable, For 100x20mm, 80x45mm Busbars, Primary Current 1000A
Regular price
$314.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Current transformers |
| Primary Current Ipn (/5) [A] | 1000 |
| Operational Frequency [Hz] | 50-60 |
| Secondary Output Current [A] | 5 |
| Overload Withstand Ipn [%] | 120 |
| Burden cl. 0.5s [VA] | 5 |
| Burden cl. 0.5 [VA] | 10 |
| Terminals Type | Screw |
| Fixing | DIN rail or by Screw |
| Operating Temperature | -25°C - +50 °C |
| Relative Humidity [%] | 90 |
| Protection Degree | IP30 |
| HS Code | 85043180 |
| Certifications | EAC |
| Conformity | IEC/EN/BS 61869-1 IEC/EN/BS 61869-2 |
