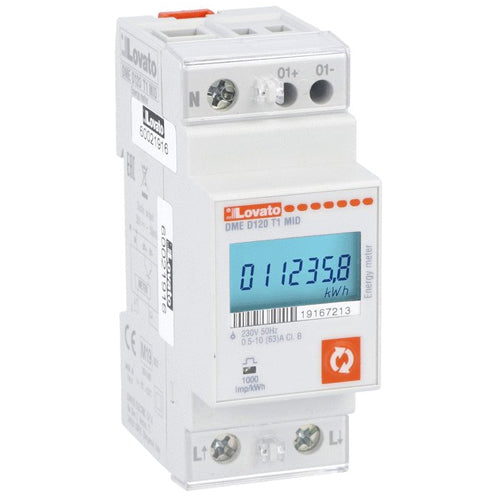

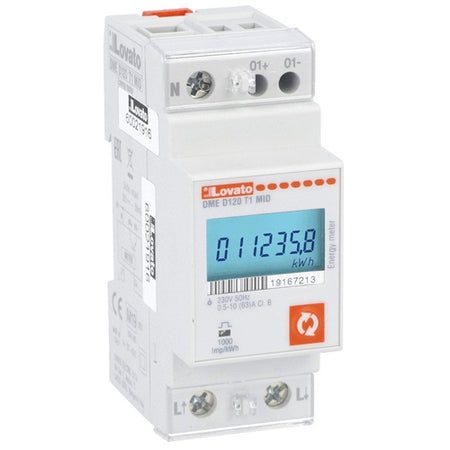

Lovato DMED120T1MID, Energy Meter, Single-Phase, MID Certified, Non Expandable, 63A Direct Connection, 2U, 1 Programmable Static Output, Multi-Measurements, 230VAC
Regular price
$893.80
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Energy meters - Single-phase |
| Type of Installation | DIN rail mounting |
| Type of Current Connection | Direct |
| IEC Maximum Current (Imax) [A] | 63 |
| Type of Energy Measurement | Imported active energy and imported reactive energy |
| Accuracy Active Energy Measurement | Class B (EN 50470-3) |
| Reactive Energy | Class 2 (IEC/EN 62053-23) |
| Current Harmonic Analysis | No |
| Built-in Communication Port | No |
| Expandable | No |
| MID Certified | Imported active energy |
| Rated Voltage (Ue) phase-neutral | 230VAC |
| Housing Type | Polyamide |
| Terminals Type | Fixed |
| Relative Humidity | <80 % |
| Protection Degree | IP40 (Front) |
| Operating Temperature | -25°C - +55 °C |
| HS Code | 90283011 |
| Certifications | EAC, RCM, MID (moduli B + D) |
| Conformity | EN50470-1 EN50470-3 TR 50579 |
