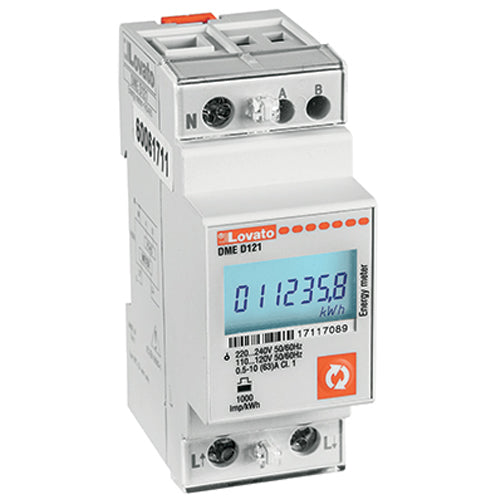

Lovato DMED121, Energy Meter, Single-Phase, Non Expandable, Digital with Backlight LCD Display, 63A Direct Connection, 2U, RS485 Interface, Multi-Measurements, 110…120/220...240VAC
Regular price
$824.98
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Energy meters - Single-phase |
| Type of Installation | DIN rail mounting |
| Type of Current Connection | Direct |
| IEC Maximum Current (Imax) [A] | 63 |
| Type of Energy Measurement | Imported active energy and imported reactive energy |
| Accuracy Active Energy Measurement | Class 1 (IEC/EN 62053-21) |
| Reactive Energy | Class 2 (IEC/EN 62053-23) |
| Current Harmonic Analysis | No |
| Built-in Communication Port | RS485 |
| Expandable | No |
| MID Certified | No |
| Rated Voltage (Ue) phase-neutral | 110…120 / 220...240 VAC |
| Housing Type | Polyamide |
| Terminals Type | Fixed |
| Relative Humidity | <80 % |
| Operating Temperature | -25°C - +55 °C |
| HS Code | 90283011 |
| Certifications | EAC, cULus, RCM |
| Conformity | EN 50470-1 IEC/EN 61010-1 UL 61010-1 CSA C22-2 n° 61010-1 |
