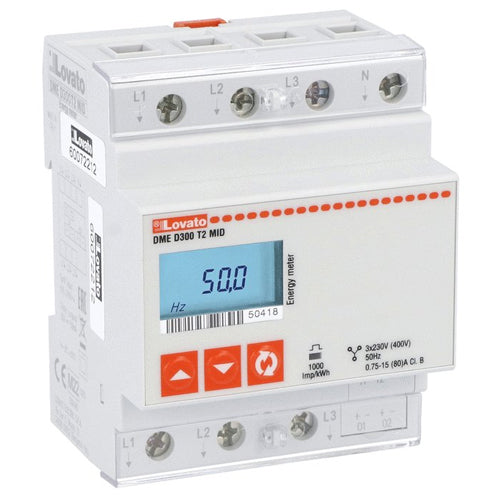

Lovato DMED300T2MID, Energy Meter, Three-Phase with Neutral, Non Expandable, MID Certified, 80A Direct Connection, 4U, 2 Programmable Static Output, Multi-Measurements, 230VAC
Regular price
$1,469.53
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Energy meters - Three-phase |
| Type of Installation | DIN rail mounting |
| Type of Current Connection | Direct |
| IEC Maximum Current (Imax) [A] | 80 |
| Type of Energy Measurement | Imported/exported active energy and imported/exported reactive energy |
| Accuracy Active Energy Measurement | Class 1 (IEC/EN 62053-21) |
| Reactive Energy | Class 2 (IEC/EN 62053-23) |
| Current Harmonic Analysis | No |
| Built-in Communication Port | No |
| Expandable | No |
| MID Certified | Imported active energy |
| Rated Voltage (Ue) phase-phase | 400 VAC |
| Rated Voltage (Ue) phase-neutral | 230 VAC |
| Housing Type | Polyamide |
| Terminals Type | Fixed |
| Relative Humidity | <80 % |
| Protection Degree | IP40 (Front) |
| Operating Temperature | -25°C - +55 °C |
| HS Code | 90283019 |
| Certifications | EAC, RCM, MID (moduli B + D) |
| Conformity | EN50470-1 EN50470-3 TR 50579 |
