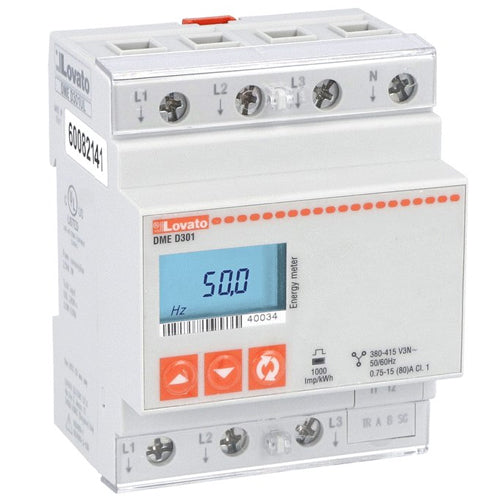

Lovato DMED301UL, Energy Meter, Three-Phase with Neutral, Non Expandable, 80A Direct Connection, 4U, RS485 Interface, Multi-Measurements, cULus Version
Regular price
$1,866.33
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Energy meters - Three-phase |
| Type of Installation | DIN rail mounting |
| Type of Current Connection | Direct |
| IEC Maximum Current (Imax) [A] | 80 |
| Type of Energy Measurement | Imported/exported active energy and imported/exported reactive energy |
| Accuracy Active Energy Measurement | Class 1 (IEC/EN 62053-21) |
| Reactive Energy | Class 2 (IEC/EN 62053-23) |
| Current Harmonic Analysis | No |
| Built-in Communication Port | RS485 |
| Expandable | No |
| MID Certified | No |
| Rated Voltage (Ue) phase-phase | 240 VAC |
| Rated Voltage (Ue) phase-neutral | 120 VAC |
| Housing Type | Polyamide |
| Terminals Type | Fixed |
| Relative Humidity | <80 % |
| Operating Temperature | -25°C - +55 °C |
| HS Code | 90283019 |
| Certifications | EAC, RCM, cULus |
| Conformity | IEC/EN 61010-1 IEC/EN 61010-2-030 IEC/EN 50470-1 |
