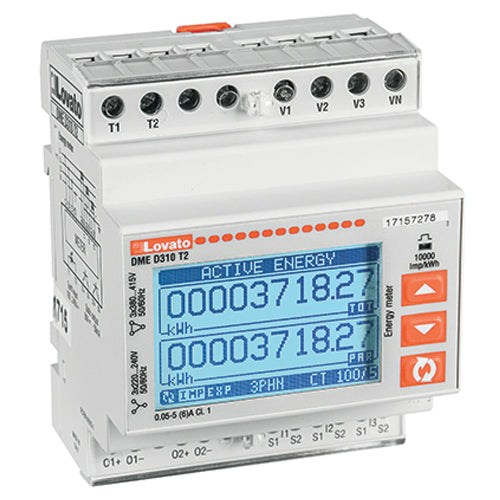

Lovato DMED310T2, Energy Meter, Three-Phase with or without Neutral, Expandable, Connection by CT /5A Secondary, 2 Programmable Static Output, 4U, Multi-Measurements
Regular price
$1,018.46
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Energy meters - Three-phase |
| Type of Installation | DIN rail mounting |
| Type of Current Connection | CT /5A |
| IEC Maximum Current (Imax) [A] | 5 |
| Type of Energy Measurement | Imported/exported active energy and imported/exported reactive energy |
| Accuracy Active Energy Measurement | Class 1 (IEC/EN 62053-21) |
| Reactive Energy | Class 2 (IEC/EN 62053-23) |
| Current Harmonic Analysis | No |
| Built-in Communication Port | No |
| Expandable | Yes |
| MID Certified | No |
| Rated Voltage (Ue) phase-phase | 380…415 VAC |
| Rated Voltage (Ue) phase-neutral | 220…240 VAC |
| Housing Type | Polyamide |
| Terminals Type | Fixed |
| Relative Humidity | <80 % |
| Operating Temperature | -25°C - +55 °C |
| HS Code | 90283019 |
| Certifications | EAC, RCM |
| Conformity | IEC/EN 61010-1 IEC/EN 61010-2-030 IEC/EN 50470-1 |
