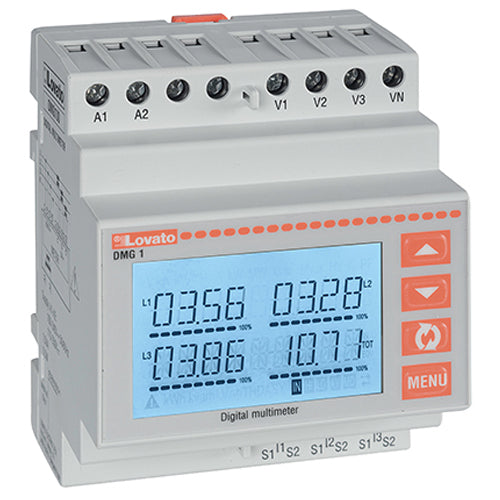

Lovato DMG100, Modular LCD Multimeter, Non Expandable, Backlight LCD Icon Display, Auxiliary Supply 100-240VAC/110-250VDC, Multilanguage: Italian, English, French, German, Spanish and Portuguese
Regular price
$809.87
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Multifunction digital metering instruments |
| Type of Installation | DIN rail mounting |
| Type of Current Connection | CT /5A /1A |
| Accuracy Active Energy Measurement | Class 1 (IEC/EN 62053-21) |
| Reactive Energy | Class 2 (IEC/EN 62053-23) |
| Current Harmonic Analysis | 15th order |
| Built-in Communication Port | No |
| Expandable | No |
| Auxiliary Rated Supply Voltage | 100…240VAC / 110…250 VDC |
| Housing Type | Polyamide |
| Terminals Type | Fixed |
| Relative Humidity | <90 % |
| Protection Degree | IP30 |
| Operating Temperature | -20°C - +60 °C |
| HS Code | 90303100 |
| Certifications | EAC, cULus, RCM, GOST |
| Conformity | IEC/EN 61010-1 IEC/EN 61010-2-030 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL61010-1 CSA 22.2 n°61010-1 |
