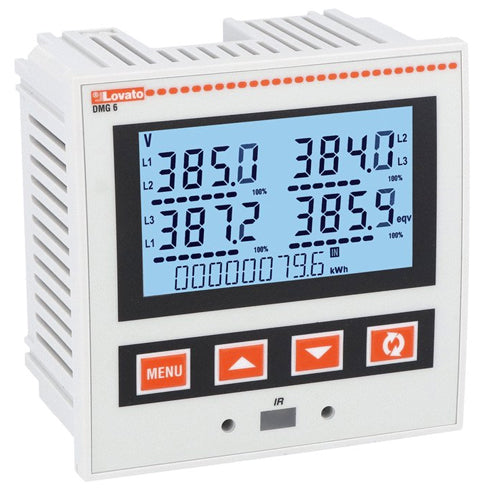

Lovato DMG615, High Accuracy Measuring of Active Energy with Class 0.5s, Backlight Icon LCD, 72x46mm/2.8x1.8'', Harmonic Analisys, Auxiliary Supply 100-440VAC/120-250VDC, Front Optical Port and RS485 Port
Regular price
$1,253.84
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Multifunction digital metering instruments |
| Type of Installation | Flush mounting |
| Type of Current Connection | CT /5A /1A |
| Accuracy Active Energy Measurement | Class 0.5s (IEC/EN 62053-22) |
| Reactive Energy | Class 2 (IEC/EN 62053-23) |
| Current Harmonic Analysis | 15th order |
| Built-in Communication Port | RS485 |
| Expandable | Yes |
| Auxiliary Rated Supply Voltage | 100…440VAC / 120…250VDC |
| Housing Type | Polyamide |
| Terminals Type | Removable |
| Relative Humidity | <90 % |
| Protection Degree | IP54 |
| Operating Temperature | -20°C - +60 °C |
| HS Code | 90303100 |
| Certifications | cULus |
| Conformity | IEC/EN 61010-1 IEC/EN 61010-2-030 IEC/EN 61000-6-2 IEC/EN 61000-6-3 |
