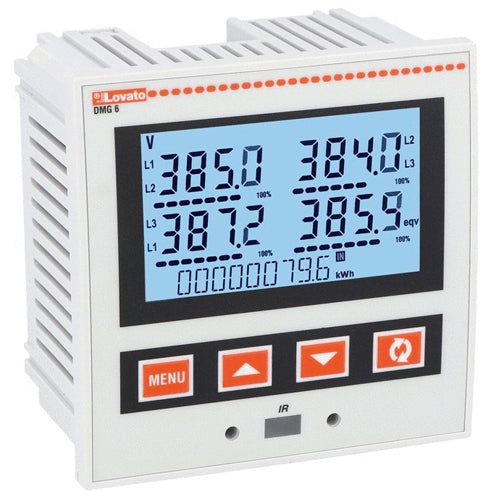

Lovato DMG620, High Accuracy Measuring of Active Energy with Class 0.5s, Backlight Icon LCD, 72x46mm/2.8x1.8'', Harmonic Analisys, Auxiliary Supply 100-440VAC/120-250VDC, Front Optical Port and Ethernet Port
Regular price
$1,417.45
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Multifunction digital metering instruments |
| Type of Installation | Flush mounting |
| Type of Current Connection | CT /5A /1A |
| Accuracy Active Energy Measurement | Class 0.5s (IEC/EN 62053-22) |
| Reactive Energy | Class 2 (IEC/EN 62053-23) |
| Current Harmonic Analysis | 15th order |
| Built-in Communication Port | Ethernet |
| Expandable | Yes |
| Auxiliary Rated Supply Voltage | 100…440VAC / 120…250VDC |
| Housing Type | Polyamide |
| Terminals Type | Removable |
| Relative Humidity | <90 % |
| Protection Degree | IP54 |
| Operating Temperature | -20°C - +60 °C |
| HS Code | 90303100 |
| Certifications | EAC, RCM |
| Conformity | IEC/EN 61010-1 IEC/EN 61010-2-030 IEC/EN 61000-6-2 IEC/EN 61000-6-3 |
