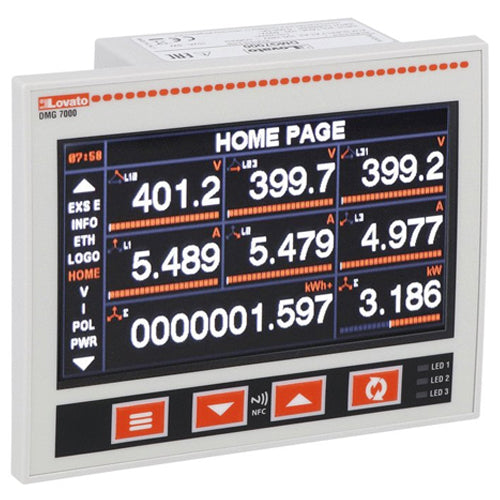

Lovato DMG7000, Power Analyzer with Widescreen Colour LCD, Auxiliary Supply 100...240VAC, Expandable With 3 Exp… Modules
Regular price
$1,424.29
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Power analyzers and EASY BRANCH power monitoring system |
| Type of Installation | Flush mounting |
| Type of Current Connection | CT /5A /1A |
| Accuracy Active Energy Measurement | Class 0.5s (IEC/EN 62053-22) |
| Reactive Energy | Class 1 (IEC/EN 62053-24) |
| Current Harmonic Analysis | 63rd order |
| Built-in Communication Port | No |
| Expandable | Yes |
| Auxiliary Rated Supply Voltage AC | 100…240 VAC |
| Auxiliary Rated Supply Voltage DC | 110…250 VDC |
| Housing Type | Xantar RAL 7035 |
| Terminals Type | Removable |
| Relative Humidity | <80 % |
| Protection Degree | IP65 |
| Operating Temperature | -20°C - +60 °C |
| HS Code | 90303100 |
| Certifications | CE, UKCA, EAC, cETLus |
| Conformity | IEC/EN/BS 61010-1 IEC/EN/BS 61010-2-030 IEC/EN/BS 61000-6-2 IEC/EN/BS 61000-6-4 UL61010-1 UL61010-2-030 CSA C22.2 No 61010-1 CSA 22.2 No 61010-2-030 |
