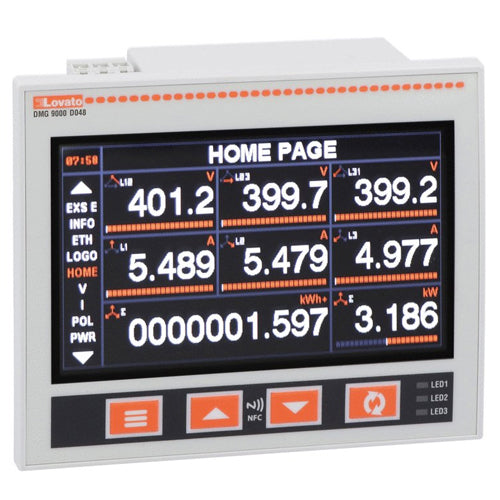

Lovato DMG9000D048, Power Analyzer with Widescreen Colour LCD, Auxiliary Supply 12...48VDC, Expandable with 3 Exp... Modules, Built-In RS485 and Ethernet Ports, Data Memory for Logging, Compatible with Easy Branch Power Monitoring System
Regular price
$2,643.89
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Power analyzers and EASY BRANCH power monitoring system |
| Type of Installation | Flush mounting |
| Type of Current Connection | CT /5A /1A |
| Accuracy Active Energy Measurement | Class 0.5s (IEC/EN 62053-22) |
| Reactive Energy | Class 1 (IEC/EN 62053-24) |
| Current Harmonic Analysis | 63rd order |
| Built-in Communication Port | RS485 and ethernet |
| Expandable | Yes |
| Auxiliary Rated Supply Voltage DC | 12…48 VDC |
| Housing Type | Xantar RAL 7035 |
| Terminals Type | Removable |
| Relative Humidity | <80 % |
| Protection Degree | IP65 |
| Operating Temperature | -20°C - +60 °C |
| HS Code | 90303100 |
| Certifications | CE, UKCA |
| Conformity | IEC/EN/BS 61010-1 UL61010-1 UL61010-2-030 CSA C22.2 No 61010-1 CSA 22.2 No 61010-2-030 |
