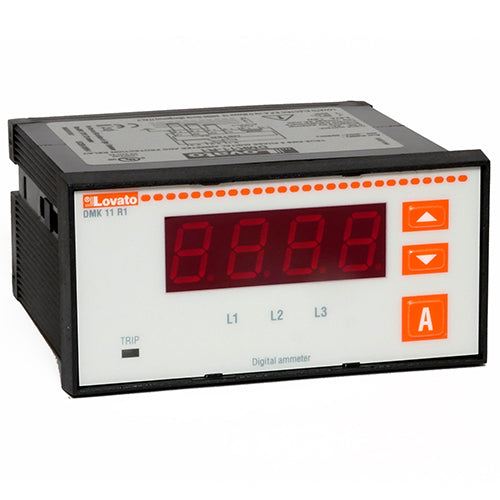

Lovato DMK11R1, Ammeter, Three-Phase, 3 Phase Current Values, 3 Max Phase Current Values, 3 Min Phase Current Values, Relay Output for Control and Protection Functions
Regular price
$474.48
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Digital metering instruments |
| Type of Installation | Flush mounting |
| Auxiliary Rated Supply Voltage AC | 220…240 VAC |
| Rated Current (Ie) | 5A |
| Measurement Range | 0.05…6 |
| Housing Type | Thermoplastic |
| Terminals Type | Removable |
| Protection Degree | IP54 |
| Operating Temperature | -20°C - +60 °C |
| HS Code | 90303100 |
| Certifications | cULus, EAC |
| Conformity | IEC/EN 61010-1 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL508 CSA C22.2 n° 14 |
