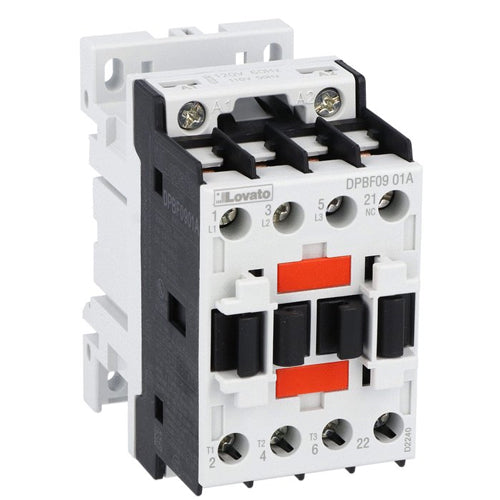

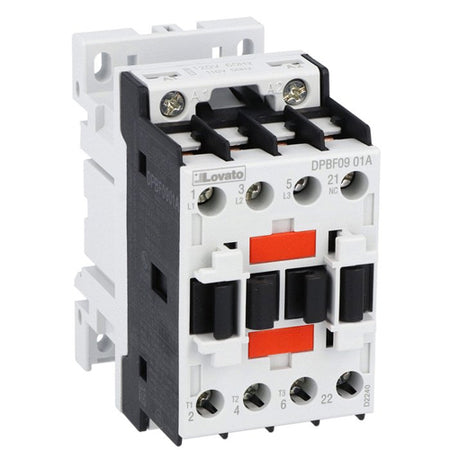

Lovato DPBF0901A23060, Non-reversing Three-pole Definite Purpose Contactor, 230VAC 60Hz Coil, 20A Full Load Amp, 1 NC Auxiliary Contact
Regular price
$45.98
Regular price
Sale
$174.42
Sale price
$45.98
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Main Features:
– Motor FLA ratings at 600VAC: 14 to 80A
– Finger safe terminals
– Positive (force) guided contacts
– Up to four front or side mount auxiliary contacts –Highly conductive auxiliary contacts
– Quick and simple installation for accessories
– Easy coil replacement
– Wide coil operating range.
| Type of product | Contactors |
| Number of poles | 3 |
| Type of coil | AC coil 60Hz |
| Rated coil voltage [V] | 230VAC |
| Type of built-in auxiliary contacts | 1NC |
| Motor Full Load Amps (FLA) 600V [A] | 20 |
| Type of mounting | Screw / DIN rail 35mm |
| Operating temperature | -50...+70°C/-60...+160°F |
| Compliance | CSA C22.2 n° 60947-1 CSA C22.2 n° 60947-4-2 UL 60947-1 UL 60947-4-1 |
| Certificates | cULus |
