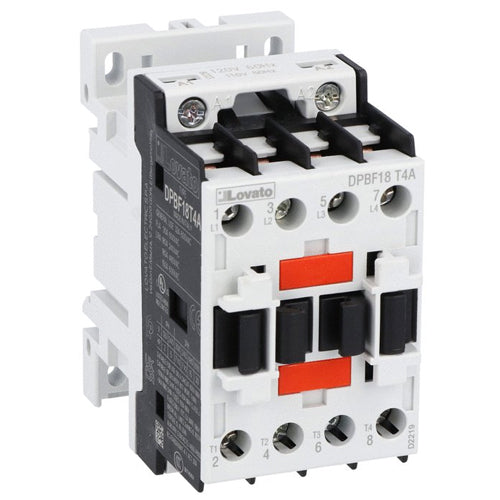

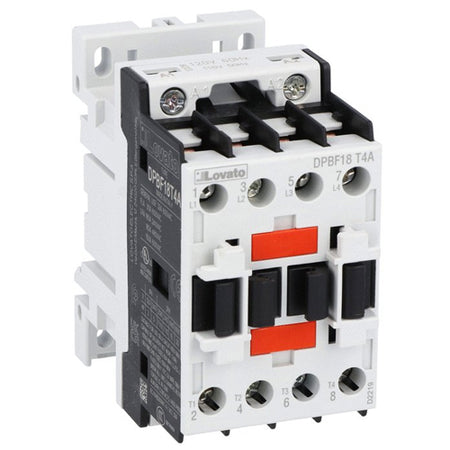

Lovato DPBF18T4A12060, Four-Pole Definite Purpose Contactor, Full Load Amp 30A, AC Coil 60Hz, 120VAC
Regular price
$273.44
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Contactors |
| Number of Poles | 4 |
| Type of Coil | AC coil 60Hz |
| Rated Coil Voltage [V] | 120 |
| Full-Load Current (FLA) for Three-Phase AC Motor [A] | 30 |
| UL/CSA Horsepower Ratings 480V [HP] | 15 |
| Contact | 4NO |
| Type of Mounting | Screw / DIN rail 35mm |
| Operating Temperature | -50°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus |
| Conformity |
UL 60947-1 UL 60947-4-1 CSA C22.2 n° 60947-1 CSA C22.2 n° 60947-4-40 |
