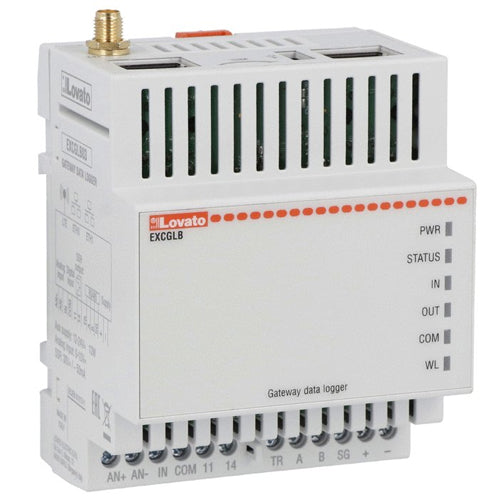

Lovato EXCGLB03, Gateway Data Logger, 1 RS485 Port, 2 Ethernet Port, 4G (LTE) Connection
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The EXCGLB… gateway data loggers have been designed to concentrate field data and make them available for consultation via a local web interface or remote software.
They are suitable for use in monitoring simple systems such as pumps driven by soft starters, machines equipped with motors with variable speed drives or microPLCs, power factor correction systems, or for the supervision of complex systems such as shopping centers or industries. With the version equipped with GPS it is also possible to geolocate machines, such as rental generators.
Communication with the devices in the field takes place via RS485 serial port or Ethernet, while the connection to the data collection software can be via the integrated Ethernet ports or via the 4G (LTE) mobile network.
| Type of Product | Gateway data logger |
| Functions | Data logger |
| Rated Power Supply Voltage | 12-24VDC |
| Transmission Technology | 4G |
| Connectivity with Synergy and Xpress | Yes (Only Synergy) |
| Support for Multiple Devices | Yes, with RS485 or/and Ethernet |
| Device Compatibility | Devices with RS485 or Ethernet and modbus slave role, third party ones included |
| Operating Temperature | -20°C - +60 °C |
| HS Code | 85364900 |
| Certifications | CE, RED |
| Conformity | EN/BS 60950-1 |
