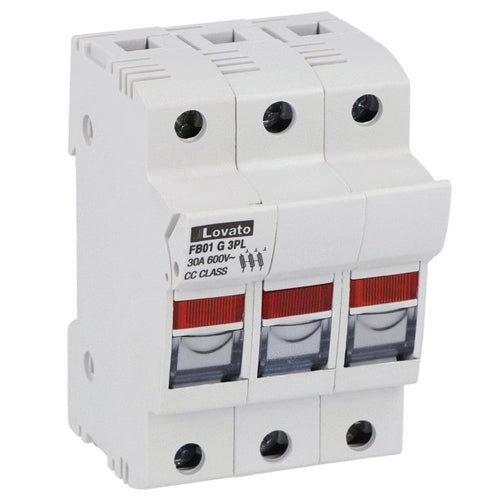

Lovato FB01G3PL, Fuse Holder for 10X38mm Class CC Fuses, 30A Rated Current At 600VAC, 3P, With Status Indicator, 3 Modules, For North American Market, UL Certified
Regular price
$83.49
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Fuse holders - 10x38mm |
| Number of Poles | 3P |
| Type of Operating Voltage | AC |
| IEC Maximum Rated Voltage Un [V] | 600 |
| IEC Maximum Rated Current In [A] | 30 |
| Light Indicator | Yes |
| Compliance | IEC / UL certified |
| Number of DIN Modules | 3 |
| Fixing | 35mm DIN rail |
| Frontal IP Degree | IP20 |
| Operating Temperature | -20°C - +70°C |
| HS Code | 85361050 |
| Certifications | EAC, UL |
| Conformity | IEC/EN 60269-1 IEC/EN 60269-2 IEC/EN 60947-1 IEC/EN 60947-3 UL 4248-1 UL 4248-4 CSA C22.2 n°4248.1 CSA C22.2 n°4248.4. |
