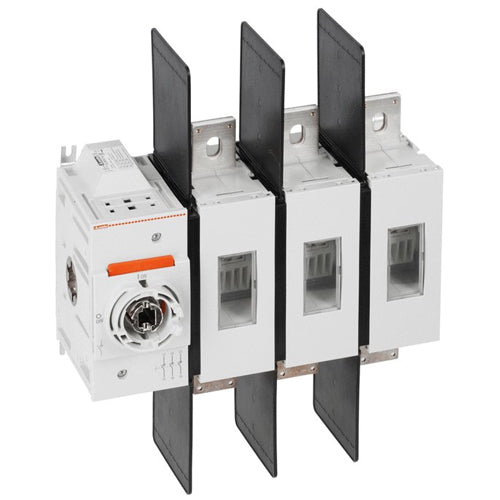

Lovato GL0800C1UL, GL Series Three-Pole Switch Disconnector, 800A, According to UL98
Regular price
$2,302.69
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Switch disconnectors |
| Number of Poles | 3 |
| Type of Operating Voltage | AC |
| IEC Conventional Free Air Thermal Current Ith [A] | 800 |
| UL Standard | UL98 |
| Type of Installation | Screw on plate or 35mm DIN rail |
| Operating Voltage Max [V] | 600 |
| Horsepower/FLA Current Three Phase Motor @240V [HP/A] | 250/604 |
| Horsepower/FLA Current Three Phase Motor @480V [HP/A] | 500/590 |
| Horsepower/FLA Current Three Phase Motor @600V [HP/A] | 500/600 |
| Operating Temperature | -25°C - +55°C |
| HS Code | 85365080 |
| Certifications | cULus |
| Conformity | IEC/EN 60947-3 IEC/EN 60947-1 |
