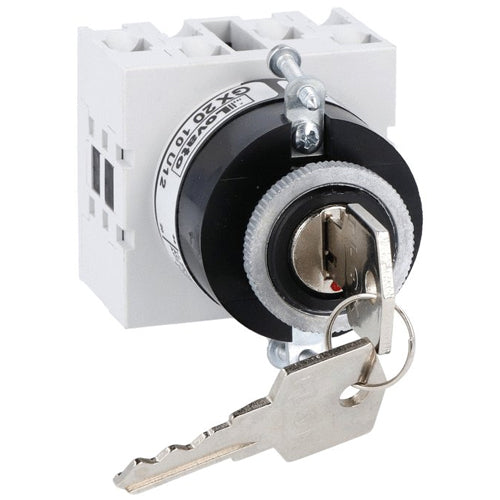

Lovato GX1690U12, Rotary Cam Switch GX Series, ON-OFF Switch 1 Pole 16A, For Front Mounting without Front Plate with Key Operation for Hole Ø22mm Fixing
Regular price
$133.50
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | ON/OFF switches |
| Switching Diagram | 90 - ON/OFF switch 1 pole |
| IEC Conventional Free Air Thermal Current Ith [A] | 16 |
| Mounting Form | U12 - Front mounting without front plate with key operation for hole diam. 22mm fixing |
| Series | GX - square-shaped contact block |
| Rated Operational Voltage [V] | 440 |
| Operating Temperature | -25°C - +55°C |
| Frontal IP Degree | IP65 |
| Terminals IP Degree | IP20 |
| HS Code | 85365080 |
| Certifications | EAC, cULus |
| Conformity | IEC/EN/BS 60947-1 IEC/EN/BS 60947-3 IEC/EN/BS 60947-5-1 IEC/EN/BS 61058-1 UL60947-4-1 CSA C22.2 n° 14 |
