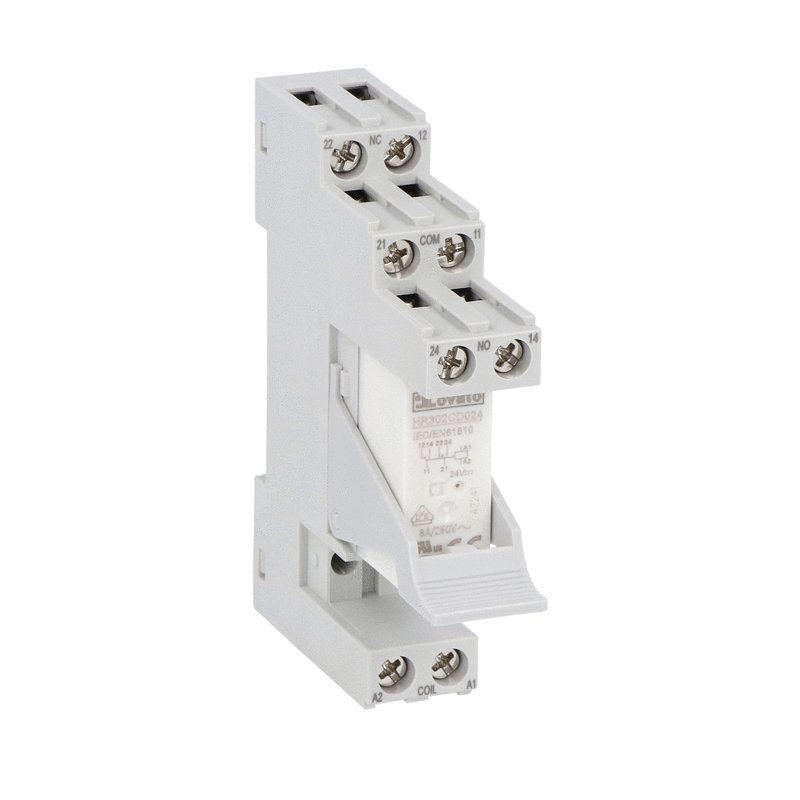

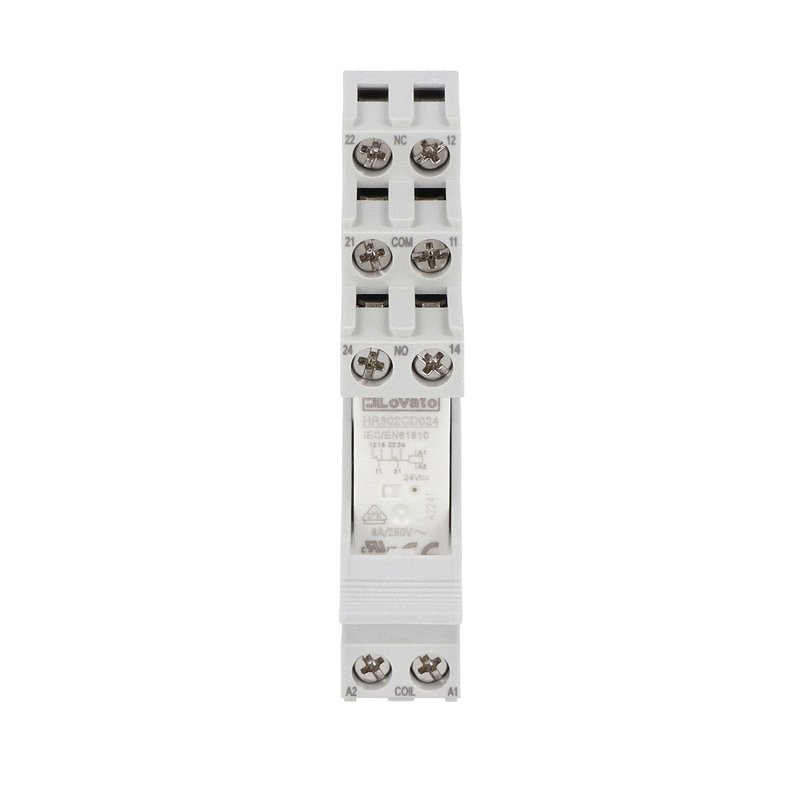

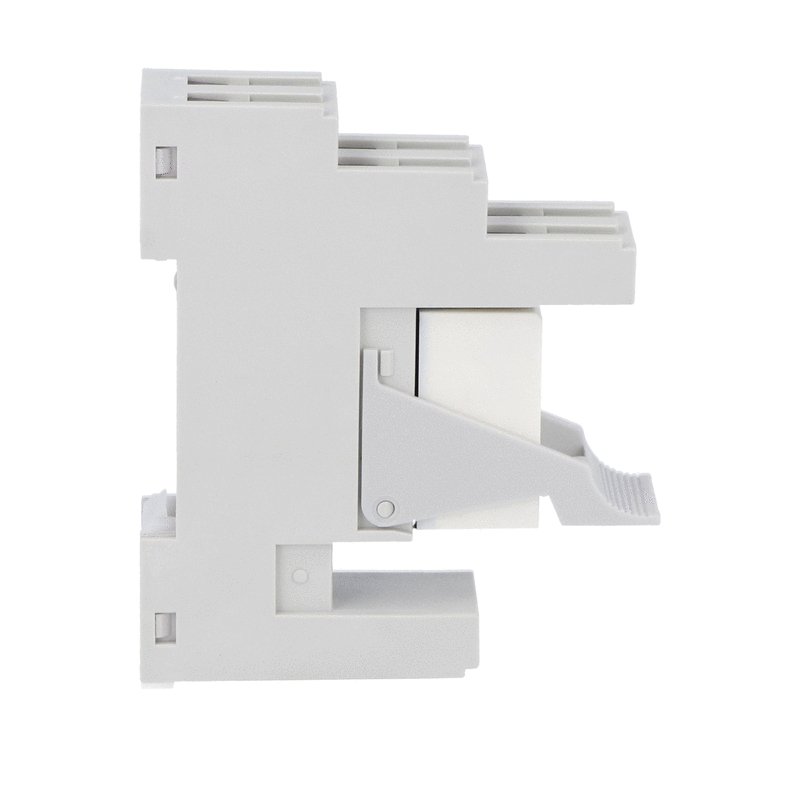

Lovato HRA302CD024K4, Assembled Miniature Relay, 24VDC, 8A, 2C/O Contact, Screw Terminals with Retain/Release Clip
Regular price
$21.10
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product |
Assembled miniature relays |
| Type of Contacts | 2 C/O |
| Relay Control Voltage | 24VDC |
| IEC Conventional Free Air Thermal Current Ith [A] | 8 |
| Type of Socket | Screw Terminals |
| Rated Insulation Voltage Ui IEC/EN [V] | 250 |
| Rated Impulse Withstand Voltage Uimp [kV] | 6 |
| Maximum Instantaneous Current [A] | 20 |
| Rated Current (In) [A] | 8 |
| Fixing | On 35mm DIN rail and with screw |
| Operating Temperature | -40°C - +85°C |
| HS Code | 85364900 |
| Conformity | IEC/EN 61810 |
