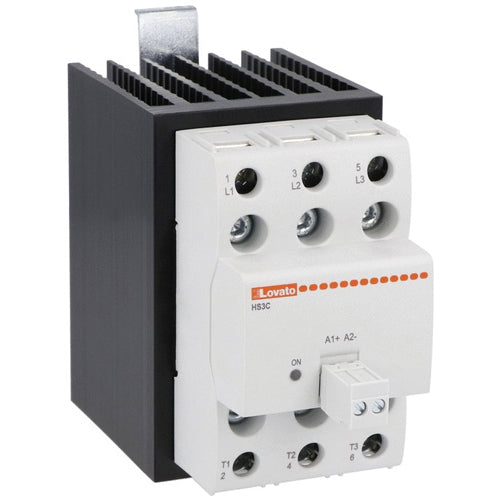

Lovato HS3C6HV025A230, Solid State Relay Complete with Heatsink, Three-Phase (3 Controlled), 25A, 90...280VAC, Screw Terminals

In stock
SKU: HS3C6HV025A230
$280.78
Ampere rating
Control voltage
Phase

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Solid state relays with heatsink, three-phase
Control Voltage 90...280VAC
Rated Operational Voltage 48…600VAC
Rated Operating Current AC-51 (Resistive Load) at 40°C 25
Rated Operating Current AC-53 (Motor Load) at 40°C 13.5
Number of Poles 3
Type of Terminals Screw
Fixing Screw or on 35mm DIN rail
Operating Temperature -40°C - +80°C
HS Code 85364900
Certifications cULus
Conformity IEC/EN/BS 60947-4-3
IEC/EN/BS 60947-4-2
IEC/EN/BS 62314
IEC/EN/BS 60335-1
