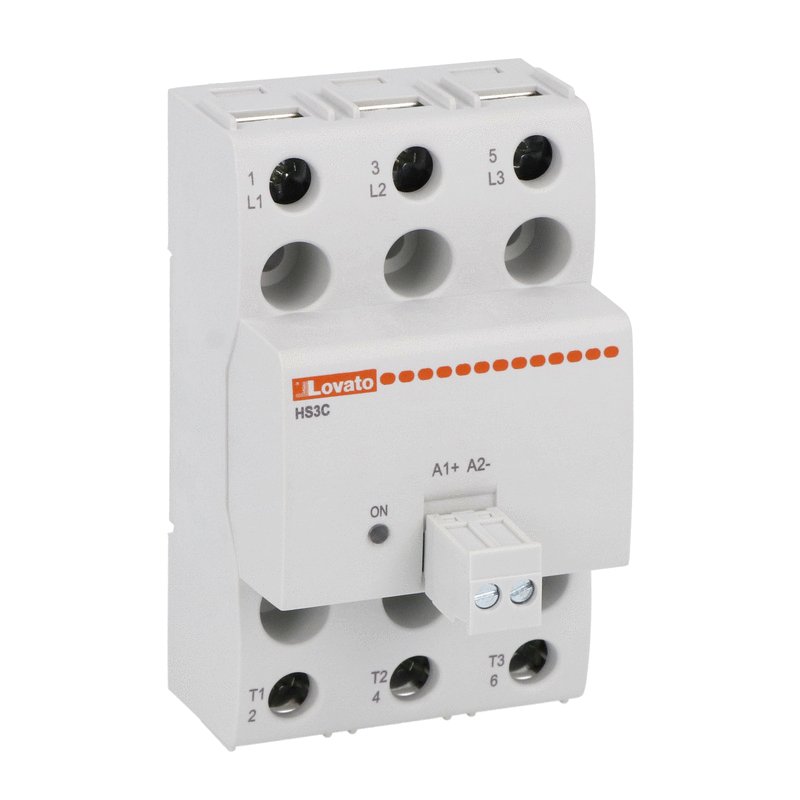

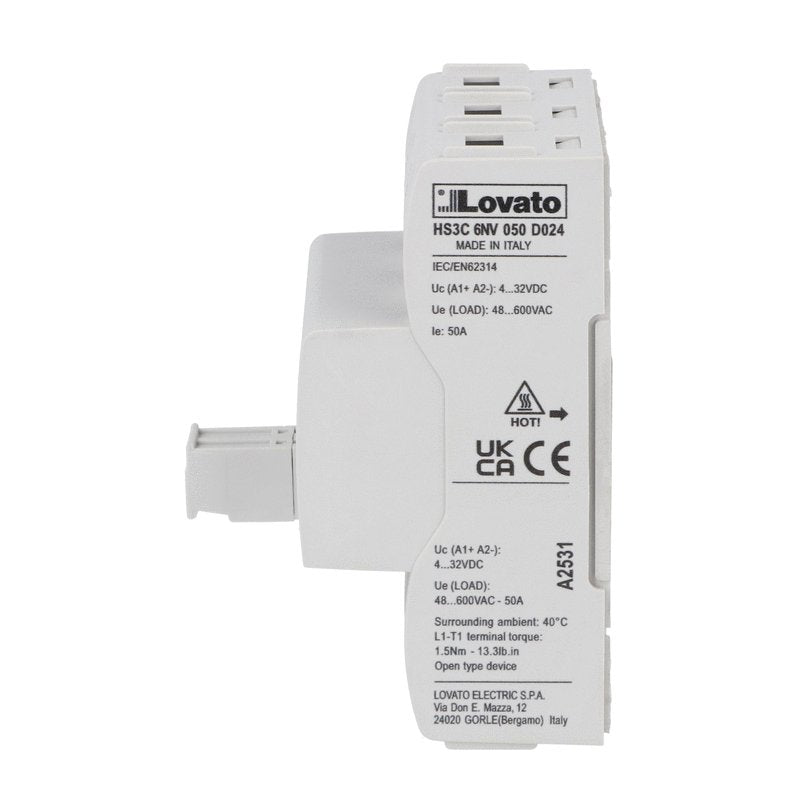

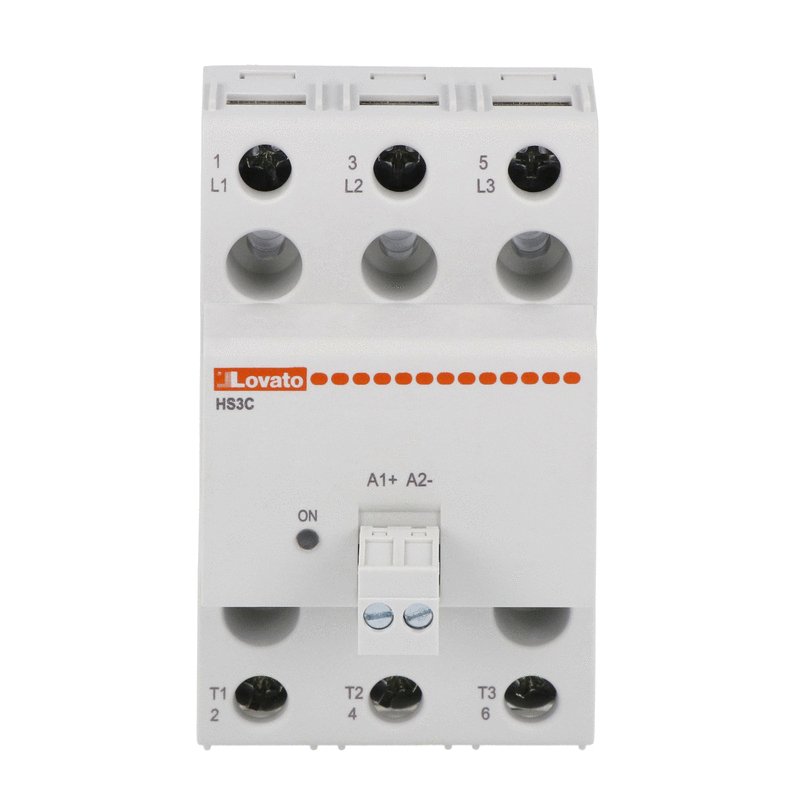

Lovato HS3C6NV050D024, Solid State Relay without Heatsink, Three-Phase (3 Controlled), 50A, 4...32VDC, Screw Terminals
Regular price
$279.12
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product |
Solid state relays without heatsink, three-phase |
| Control Voltage | 4...32VDC |
| Rated Operational Voltage | 48…600VAC |
| Rated Operating Current AC-51 (Resistive Load) at 40°C | 50 |
| Rated Operating Current AC-53 (Motor Load) at 40°C | 15 |
| Number of Poles | 3 |
| Type of Terminals | Screw |
| Fixing | Screw or on 35mm DIN rail |
| Operating Temperature | -40°C - +80°C |
| HS Code | 85364900 |
| Conformity | IEC/EN/BS 61000-6-2; IEC/EN/BS 61000-6-3 |
