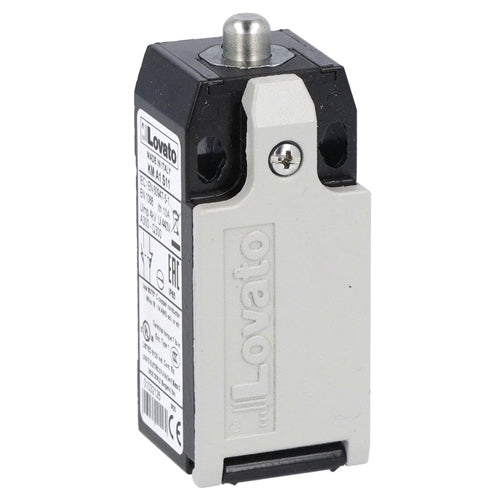

Lovato KMA1S11P, Limit Switch, K Series, One Bottom Cable Entry, Top Metal Push Rod Plunger, Dimensions to EN/BS 50047, Metal Body, Contacts 1NO+1NC Snap Action, PG13.5 Cable Entry
Regular price
$128.82
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Metal and plastic limit switches |
| Product Characteristics | Top push rod plunger |
| Housing Material | Aluminium-zinc alloy |
| Rod Characteristics | Aluminium-zinc alloy |
| Type of Contacts | 1NO+1NC Snap action |
| Cable Entry | M20 on the bottom |
| Thermal Current Ith | 10A |
| Rated Insulation Voltage Ui | 440V |
| Operating Temperature | -25°C - +70°C |
| Pollution Degree | 3 |
| IP Degree | Terminals IP20; Body housing IP65 |
| HS Code | 85365080 |
| Certifications | cULus, EAC, CCC |
| Conformity |
EN 50047 IEC/EN 60947-1 IEC/EN 60947-5-1 IEC/EN 60204-1 UL508 CSA C22.2 n° 14 |
