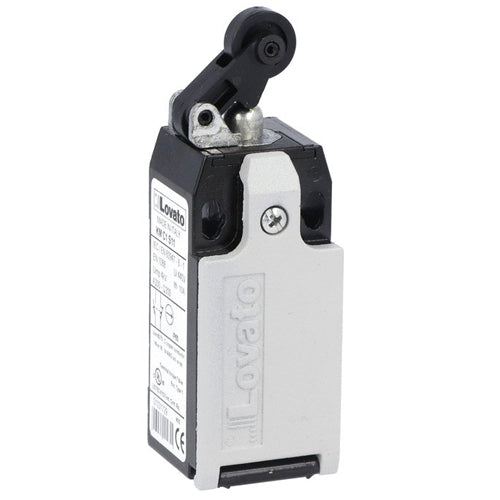

Lovato KMC1S02N, Limit Switch, K Series, One Bottom Cable Entry, Plastic Roller Centre Push Lever, Dimensions to EN/BS 50047, Metal Body, Contacts 2NC Snap Action, 1/2'' NPT
Regular price
$106.40
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Metal and plastic limit switches |
| Product Characteristics | Roller centre push lever |
| Housing Material | Aluminium-zinc alloy |
| Roller Characteristics | Plastic |
| Type of Contacts | 2NC Snap action |
| Cable Entry | M20 on the bottom |
| Thermal Current Ith | 10A |
| Rated Insulation Voltage Ui | 440V |
| Operating Temperature | -25°C - +70°C |
| Pollution Degree | 3 |
| IP Degree | Terminals IP20; Body housing IP65 |
| HS Code | 85365080 |
| Certifications | cULus, EAC, CCC |
| Conformity |
EN 50047 IEC/EN 60947-1 IEC/EN 60947-5-1 IEC/EN 60204-1 UL508 CSA C22.2 n° 14 |
