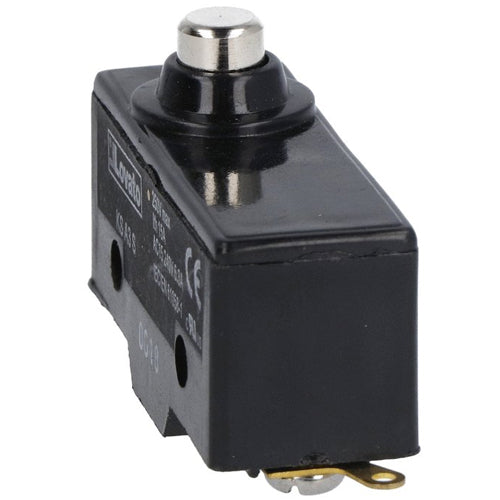

Lovato KSA3S, Plastic Micro Switch, K Series, Top Push Rod, Metal and Low Rod Plunger, 1NO/NC Contact, Solder Terminals
Regular price
$24.03
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Plastic micro switches |
| Product Characteristics | Top push rod - metal and low rod plunger |
| Thermal Current Ith | 15A |
| Rated Insulation Voltage Ui | 250V |
| Housing Material | Polymer thermoplastic |
| Type of Contacts | 1NO/NC |
| Type of Terminals | Solder |
| Operating Temperature | -25°C - +70°C |
| IP Degree | Body housing: IP00 or IP20 with terminal shroud |
| HS Code | 85365080 |
| Certifications | cURus, EAC |
| Conformity | IEC/EN 60947-1 IEC/EN 60947-5-1 IEC/EN 61058-1 UL508 CSA C22.2 n° 14. |
