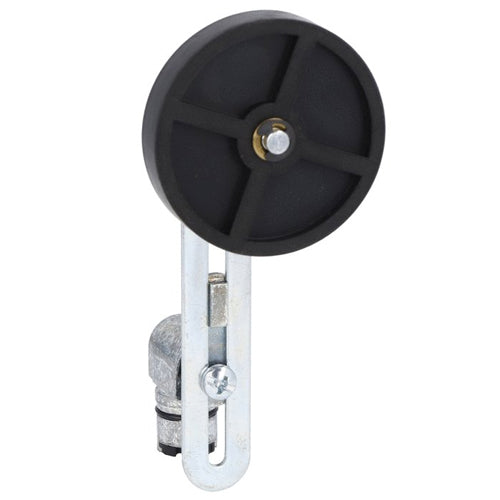

Lovato KXAF4, Operating Head, Adjustable Offset Rubber Roller Lever Ø50x10mm/Ø1.97x0.39in
Regular price
$48.48
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The KXA... operating heads can be used as spare parts for the K series limit switches or coupled with the KXC... bodies to obtain complete limit switches in the required configurations.
The heads are made of metal and warrant sturdiness and operating reliability in all conditions.
The shape of the coupling section with the body of the K series switches permits to orient the head in any 45° angle position while the initial lever and rod position can be adjusted 360° at 15° angle positions.
The head fixing to the body is achieved by the innovative locking bayonet mechanism so there is no need of tools.
Tightening torque for eventual operating head actuator fixing is 0.8Nm/7lb.in.
