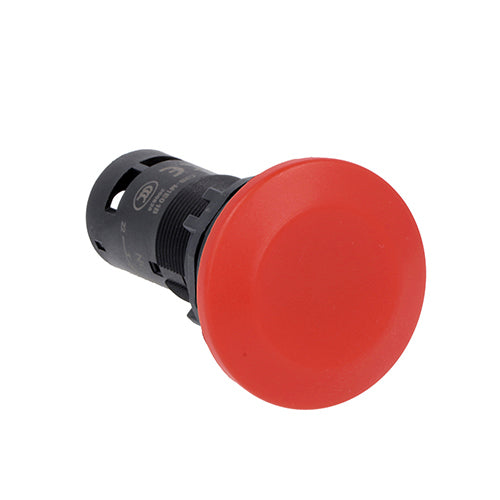

Lovato LMPB6144T11, Monoblock Mushroom Head Pushbutton Actuator, Red, Spring Return, 1NO+1NC Screw Terminals
Regular price
$57.95
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Monoblock actuators |
| Type of Spare Actuator | Pushbutton |
| Colour | Red |
| Illuminated element | No |
| Type of Terminals | Screw |
| Latching Mechanism | Spring return |
| Head diameter [mm] | 40 |
| Type of Positions | Monoblock mushroom head |
| IEC Degree of Protection | IP66 on front, IP20 on terminals |
| Rated insulation voltage Ui IEC/EN | 400V |
| IEC Conventional free air thermal current Ith ≤ 40°C | 8A |
| UL Degree of Protection | Type 1, 4X indoor and 13 |
| Operating Temperature | -25°C - +70°C |
| HS Code | 85365080 |
| Certifications | UL |
