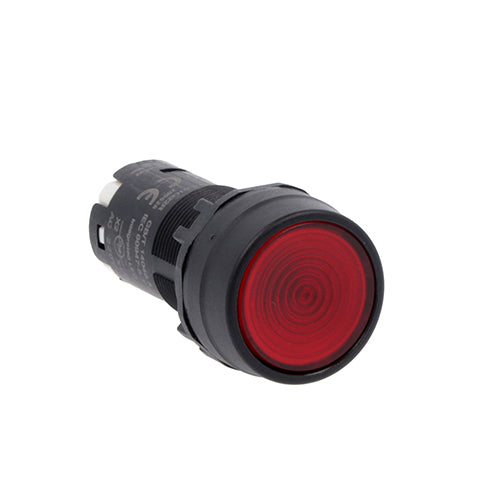

Lovato LMPBL104S01B, Monoblock Illuminated Pushbutton Actuator, Spring Return, Flush, Red, 24VAC/DC, 1NC Spring Terminals
Regular price
$54.32
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Monoblock actuators |
| Type of Spare Actuator | Pushbutton |
| Colour | Red |
| Illuminated element | Yes |
| Symbol | No |
| Type of Terminals | Spring |
| Latching Mechanism | Spring return |
| Supply Voltage | 24VAC/VDC |
| IEC Degree of Protection | IP66 on front, IP20 on terminals |
| Rated insulation voltage Ui IEC/EN | 400V |
| IEC Conventional free air thermal current Ith ≤ 40°C | 8A |
| UL Degree of Protection | Type 1, 4X indoor and 13 |
| Operating Temperature | -25°C - +55°C |
| HS Code | 85365080 |
| Certifications | UL |
