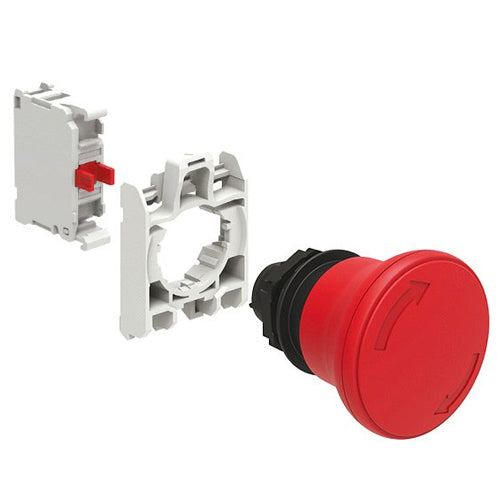

Lovato LPCB6344K01, Mushroom Head Pushbutton Actuator In Kit, Latch, Turn to Release, Ø40mm, For Normal Stopping, Red with Mounting Adapter and 1 Contact Element, NC, Screw Termination
Regular price
$64.74
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Pushbuttons in kit |
| Type of Actuator | Mushroom head |
| Series | Platinum chromed plastic Ø22mm |
| Colour | Red |
| Illuminated Element | No |
| Symbol | No |
| Type of Terminals | Screw |
| Latching Mechanism | Turn to release |
| Type of Stopping for Mushroom Head | Normal |
| Complete with Mounting Adapter | Yes |
| Rated Insulation Voltage Ui IEC/EN | 690V |
| IEC Conventional Free Air Thermal Current Ith | 10A |
| IEC Degree of Protection | IP66, IP67 and IP69K |
| UL Degree of Protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| Operating Temperature | -25°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus, RINA, EAC, CCC |
| Conformity |
IEC/EN/BS 60947-1 IEC/EN/BS 60947-5-1 UL508 CSA C22.2 n° 14 |
