Home » Lovato LPCB6744K01, Mushroom Head Pushbutton Actuator In Kit, Latch, Pull to Release, Ø40mm, For Emergency Stopping, ISO 13850 Compliant, Red with Mounting Adapter and 1 Contact Element, NC, Screw Termination
Lovato

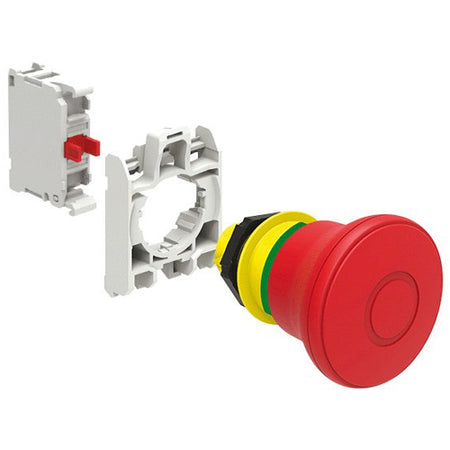

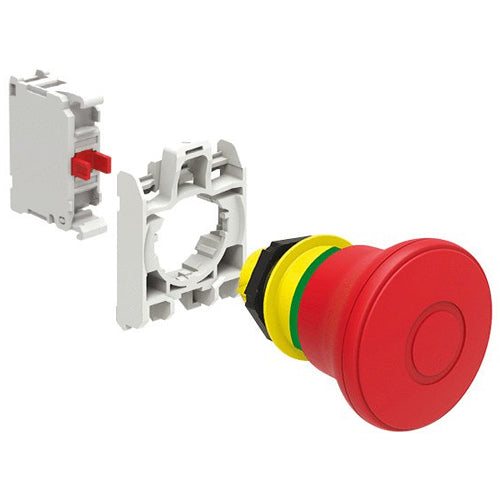

Lovato LPCB6744K01, Mushroom Head Pushbutton Actuator In Kit, Latch, Pull to Release, Ø40mm, For Emergency Stopping, ISO 13850 Compliant, Red with Mounting Adapter and 1 Contact Element, NC, Screw Termination

In stock
SKU: LPCB6744K01
$54.56
Colour
Contact

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Pushbuttons in KIT
Type of Actuator Mushroom head
Series Platinum chromed plastic Ø22mm
Colour Red
Illuminated Element No
Symbol No
Type of Terminals Screw
Latching Mechanism Pull to Release
Type of Stopping for Mushroom Head ISO13850 Emergency
Complete with Mounting Adapter Yes
Rated Insulation Voltage Ui IEC/EN 690V
IEC Conventional Free Air Thermal Current Ith 10A
IEC Degree of Protection IP66, IP67 and IP69K
UL Degree of Protection Type 1, 2, 3R, 4, 4X, 12, 12K
Operating Temperature -25°C - +70°C
HS Code 85365080
Certifications cULus, RINA, EAC, CCC
Conformity IEC/EN/BS 60947-1
IEC/EN/BS 60947-5-1
UL508
CSA C22.2 n° 14
