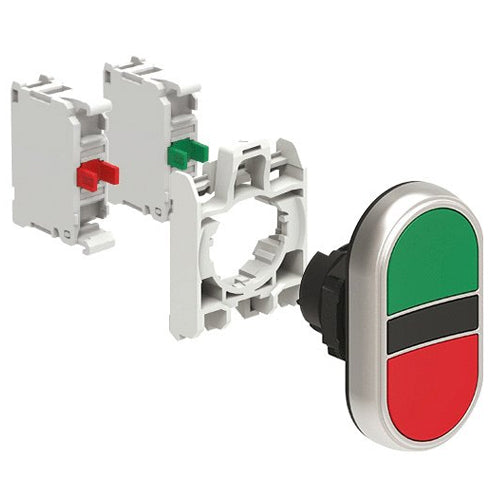

Lovato LPCB7113K11, Double-Touch Actuator in Kit, Spring Return, Two Flush Pushbuttons, Green/Red, With Mounting Adapter and Two Contact Elements, 1NO+1NC, Screw Termination
Regular price
$47.55
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Pushbuttons in KIT |
| Type of Actuator | Double-touch with two flush pushbuttons |
| Series | Platinum chromed plastic Ø22mm |
| Colour | Green/Red |
| Illuminated Element | No |
| Symbol | No |
| Type of Terminals | Screw |
| Latching Mechanism | Spring return |
| Complete with Mounting Adapter | Yes |
| Rated Insulation Voltage Ui IEC/EN | 690V |
| IEC Conventional Free Air Thermal Current Ith | 10A |
| Material | Polyamide |
| IEC Degree of Protection | IP66, IP67 and IP69K |
| UL Degree of Protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| Operating Temperature | -25°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus, RINA, EAC, CCC |
| Conformity |
IEC/EN/BS 60947-1 IEC/EN/BS 60947-5-1 UL508 CSA C22.2 n° 14 |
