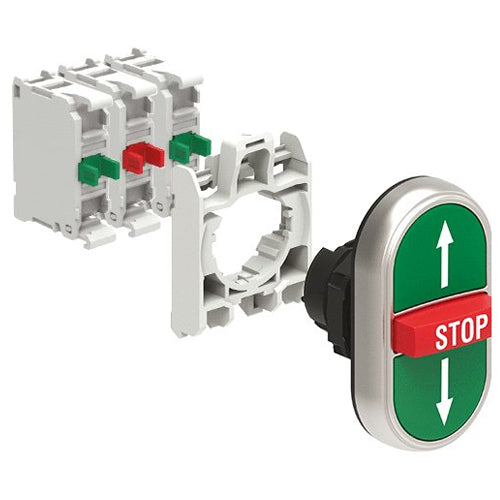

Lovato LPCB7355K21, Triple-Touch Actuator in Kit, Two External Flush and One Middle Extended Pushbuttons, Spring Return with "Up Arrow/STOP/Down Arrow" Symbol, With Mounting Adapter and Two Contact Elements, 2NO+1NC, Screw Termination
Regular price
$74.18
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Pushbuttons in KIT |
| Type of Actuator | Triple-touch with one extended and two flush pushbuttons |
| Series | Platinum chromed plastic Ø22mm |
| Colour | Green/Red/Green |
| Illuminated Element | No |
| Symbol | Yes |
| Type of Terminals | Screw |
| Latching Mechanism | Spring return |
| Complete with Mounting Adapter | Yes |
| Rated Insulation Voltage Ui IEC/EN | 690V |
| IEC Conventional Free Air Thermal Current Ith | 10A |
| IEC Degree of Protection | IP66, IP67 and IP69K |
| UL Degree of Protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| Operating Temperature | -25°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus, RINA, EAC, CCC |
| Conformity |
IEC/EN/BS 60947-1 IEC/EN/BS 60947-5-1 UL508 CSA C22.2 n° 14 |
