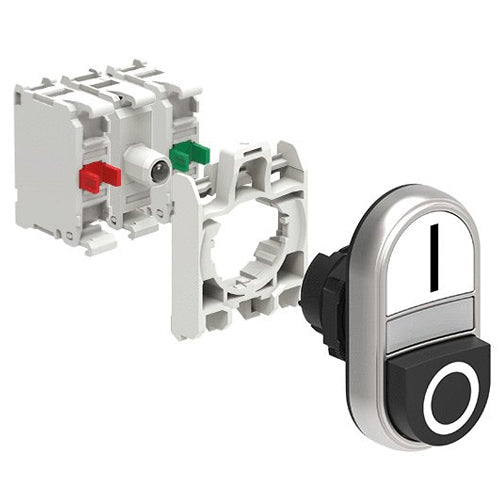

Lovato LPCBL7224K11PM, Double-Touch Actuator in Kit, White Indicator, One Extended and One Flush Pushbuttons, "I-O" Symbol, White/Black, With Mounting Adapter and 2 Contact Elements, LED Integrated Lamp-Holder, Steady Light, 185...265VAC/DC
Regular price
$101.52
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Pushbuttons in KIT |
| Type of Actuator | Double-touch with one extended and one flush pushbuttons |
| Series | Platinum chromed plastic Ø22mm |
| Colour | White/Black |
| Illuminated Element | Yes |
| Symbol | Yes |
| Type of Terminals | Screw |
| Latching Mechanism | Spring return |
| Supply Voltage | 185...265VAC/VDC |
| Complete with Mounting Adapter | Yes |
| Rated Insulation Voltage Ui IEC/EN | 690V |
| IEC Conventional Free Air Thermal Current Ith | 10A |
| IEC Degree of Protection | IP66, IP67 and IP69K |
| UL Degree of Protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| Operating Temperature | -25°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus, RINA, EAC, CCC |
| Conformity |
IEC/EN/BS 60947-1 IEC/EN/BS 60947-5-1 UL508 CSA C22.2 n° 14 |
