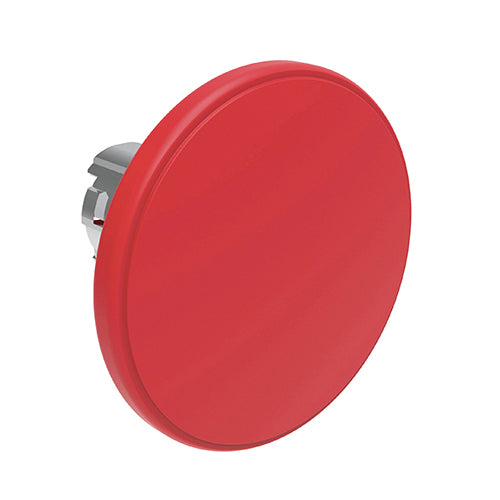

Lovato LPSB6164, Mushroom Head Pushbutton Actuator, Ø22mm Platinum Series Metal, Spring Return, Ø60mm Head Diameter, Red
Regular price
$39.30
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Pushbuttons |
| Type of Actuator | Mushroom head |
| Series | Platinum metal Ø22mm |
| Colour | Red |
| Illuminated Element | No |
| Symbol | No |
| Latching Mechanism | Spring return |
| Type of Stopping for Mushroom Head | Normal |
| Head Diameter [mm] | 60 |
| Material | Aluminium and zinc alloy for metal parts and polyamide for plastic parts |
| IEC Degree of Protection | IP66, IP67 and IP69K |
| Fixing | Without mounting adapter |
| UL Degree of Protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| Operating Temperature | -25°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus |
| Conformity |
IEC/EN/BS 60947-1 IEC/EN/BS 60947-5-1 UL508 CSA C22.2 n° 14 |
