Home » Lovato LPSB6742, Mushroom Head Pushbutton Actuator, Ø22mm Platinum Series Metal, Latch, Pull to Release, Ø40mm Head Diameter, For Normal Stopping, Black
Lovato

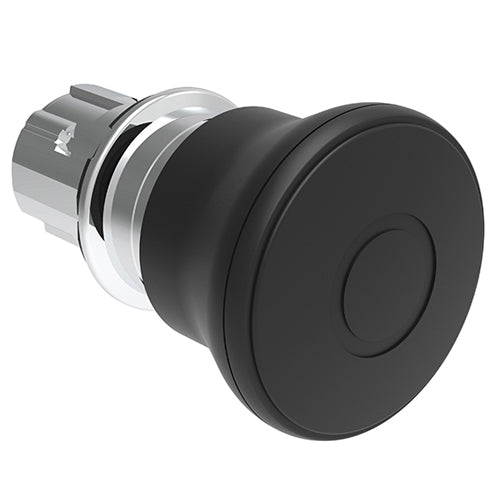

Lovato LPSB6742, Mushroom Head Pushbutton Actuator, Ø22mm Platinum Series Metal, Latch, Pull to Release, Ø40mm Head Diameter, For Normal Stopping, Black

In stock
SKU: LPSB6742
$47.62
Colour

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Pushbuttons
Type of Actuator Mushroom head
Series Platinum metal Ø22mm
Colour Black
Illuminated Element No
Symbol No
Latching Mechanism Pull to release
Type of Stopping for Mushroom Head Normal
Head Diameter [mm] 40
Material Aluminium and zinc alloy for metal parts and polyamide for plastic parts
IEC Degree of Protection IP66, IP67 and IP69K
Fixing Without mounting adapter
UL Degree of Protection Type 1, 2, 3R, 4, 4X, 12, 12K
Operating Temperature -25°C - +70°C
HS Code 85365080
Certifications cULus
Conformity IEC/EN/BS 60947-1
IEC/EN/BS 60947-5-1
UL508
CSA C22.2 n° 14
