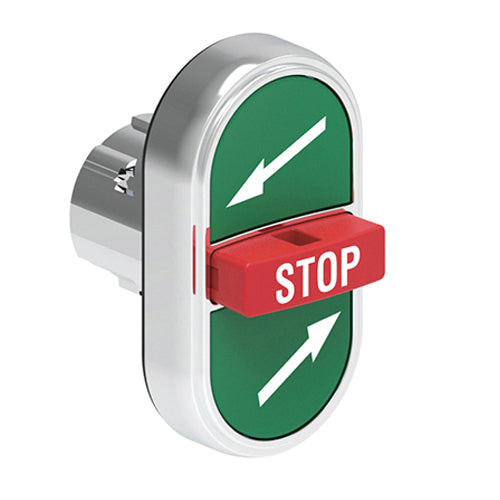

Lovato LPSB7375, Triple-Touch Actuator with "Top Right Arrow/STOP/Bottom Left Arrow" Symbol, Ø22mm Platinum Series Metal, Two External Flush and One Middle Extended Pushbuttons, Spring Return, Green/Red/Green
Regular price
$31.74
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Pushbuttons |
| Type of Actuator | Triple-touch with one extended and two flush pushbuttons |
| Series | Platinum metal Ø22mm |
| Colour | Green/Red/Green |
| Illuminated Element | No |
| Symbol | Yes |
| Latching Mechanism | Spring return |
| Material | Aluminium and zinc alloy for metal parts and polyamide for plastic parts |
| IEC Degree of Protection | IP66, IP67 and IP69K |
| Fixing | Without mounting adapter |
| UL Degree of Protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| Operating Temperature | -25°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus |
| Conformity |
IEC/EN/BS 60947-1 IEC/EN/BS 60947-5-1 UL508 CSA C22.2 n° 14 |
