Home » Lovato LPSBL106K11PB6, Illuminated Button Actuator in Kit, Spring Return, Flush, Blue, With Mounting Adapter and Two Contact Elements, 1NO+1NC, Screw Termination, LED Integrated Lamp-Holder, Steady Light, 12...30VAC/DC
Lovato

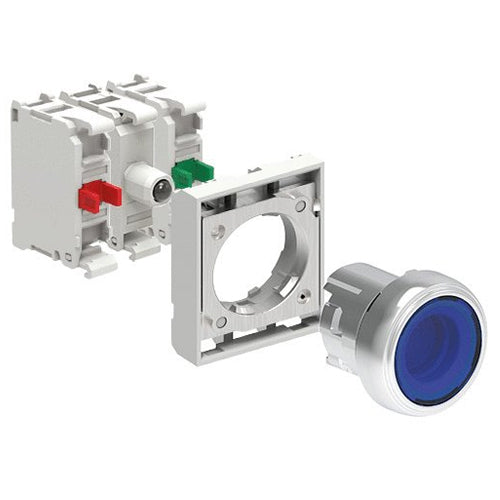

Lovato LPSBL106K11PB6, Illuminated Button Actuator in Kit, Spring Return, Flush, Blue, With Mounting Adapter and Two Contact Elements, 1NO+1NC, Screw Termination, LED Integrated Lamp-Holder, Steady Light, 12...30VAC/DC

In stock
SKU: LPSBL106K11PB6
$71.22
Colour
Contact
Control voltage

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Pushbuttons in KIT
Type of Actuator Flush
Series Platinum metal Ø22mm
Colour Blue
Illuminated Element Yes
Symbol No
Type of Terminals Screw
Latching Mechanism Spring return
Supply Voltage 12…30VAC/VDC
Complete with Mounting Adapter Yes
Rated Insulation Voltage Ui IEC/EN 690V
IEC Conventional Free Air Thermal Current Ith 10A
IEC Degree of Protection IP66, IP67 and IP69K
UL Degree of Protection Type 1, 2, 3R, 4, 4X, 12, 12K
Operating Temperature -25°C - +70°C
HS Code 85365080
Certifications cULus, RINA, EAC, CCC
Conformity IEC/EN/BS 60947-1
IEC/EN/BS 60947-5-1
UL508
CSA C22.2 n° 14
