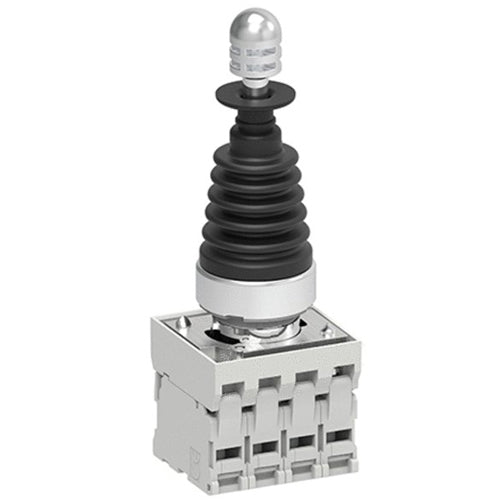

Lovato LPSJ410, Joystick with Mechanical Interlock, Ø22mm Platinum Series Metal, Complete with Auxiliary Contact, Instable, 4NO Auxiliary Contacts
Regular price
$167.76
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Joystick |
| Series | Platinum metal Ø22mm |
| Illuminated Element | No |
| N° of Directions for Joystick | 4 |
| Mechanical Interlock for Joystick | Yes |
| Type of Positions for Selector Switches | 4 instable |
| Material | Aluminium and zinc alloy for metal parts and polyamide for plastic parts. Sealing boot is NBR rubber |
| IEC Degree of Protection | IP66 |
| Rated Insulation Voltage Ui IEC/EN | 690V |
| IEC Conventional Free Air Thermal Current Ith | 10A |
| Terminals Screw | Clamp screw with washer |
| Mounting Adapter | Included with Contacts |
| UL Degree of Protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| Operating Temperature | -25°C - +60°C |
| HS Code | 85365080 |
| Certifications | cULus |
| Conformity |
IEC/EN 60947-1 IEC/EN 60947-5-1 UL508 CSA C22.2 n° 14 |
