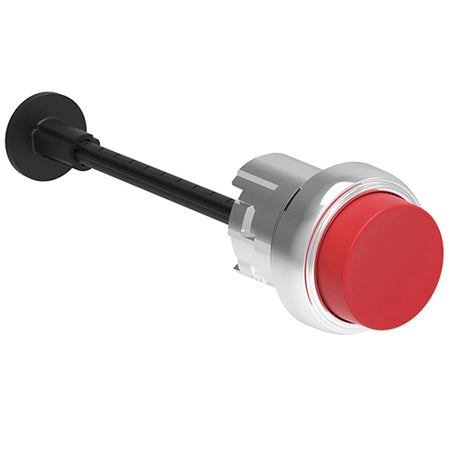

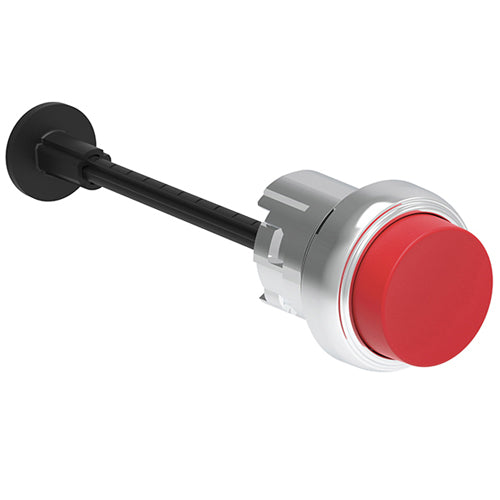

Lovato LPSR2004, Mechanical Rest Button, Complete Unit, Spring Return, Ø22mm Platinum Series Metal, Extended, Adjustable Length 0...150mm/5.9in, Complete with Shaft, Red
Regular price
$27.20
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Pushbuttons |
| Type of Actuator | Extended |
| Series | Platinum metal Ø22mm |
| Colour | Red |
| Illuminated Element | No |
| Symbol | No |
| Latching Mechanism | Spring return |
| Material | Aluminium and zinc alloy for metal parts and polyamide for plastic parts |
| IEC Degree of Protection | IP66, IP67 and IP69K |
| UL Degree of Protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| Fixing | Without mounting adapter |
| Operating Temperature | -25°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus |
| Conformity |
IEC/EN/BS 60947-1 IEC/EN/BS 60947-5-1 UL508 CSA C22.2 n° 14 |
