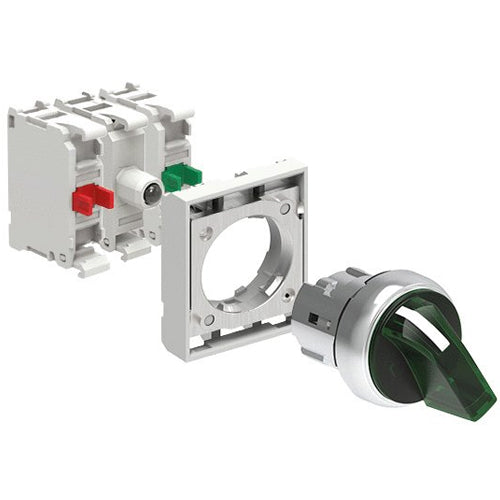

Lovato LPSSL120K11PB3, Illuminated Selector Switch Actuator In Kit, 2 Position, 0 - 1, Green, With Mounting Adapter and 2 Contact Elements, 1NO+1NC, Screw Termination, LED Integrated Lamp-Holder, Steady Light, 12...30VAC/DC
Regular price
$96.11
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Selector switches in KIT |
| Series | Platinum metal Ø22mm |
| Colour | Green |
| Illuminated Element | Yes |
| Symbol | No |
| Type of Terminals | Screw |
| Supply Voltage | 12…30VAC/VDC |
| Type of Lever for Selector Switches | Short |
| Type of Positions for Selector Switches | 2 |
| Type of Positions | 0 - 1 |
| Complete with Mounting Adapter | Yes |
| Rated Insulation Voltage Ui IEC/EN | 690V |
| IEC Conventional Free Air Thermal Current Ith | 10A |
| IEC Degree of Protection | IP66, IP67 and IP69K |
| Mounting Adapter | LPXAU120M |
| UL Degree of Protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| Operating Temperature | -25°C - +70°C |
| HS Code | 85365080 |
| Certifications | cULus, CCC, RINA, EAC |
| Conformity |
IEC/EN/BS 60947-1 IEC/EN/BS 60947-5-1 UL508 CSA C22.2 n° 14 |
