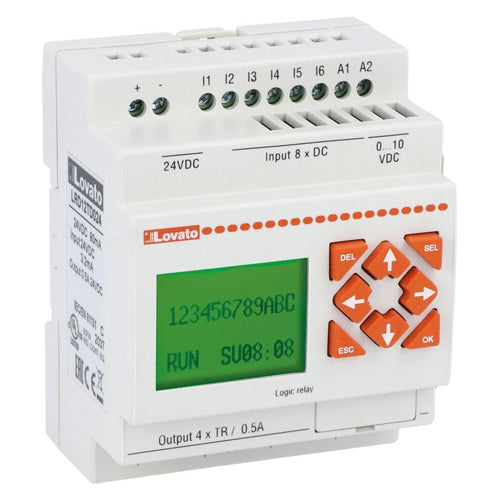

Lovato LRD12TD024, Micro PLC, Base Module, Auxiliary Supply Voltage 24VDC, 8 Inputs/4 Outputs Transistor
Regular price
$308.02
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Micro PLC base modules |
| Max I/O Number | 12 (8 inputs + 4 outputs) up to 36 with LRE modules |
| Rated Supply Voltage | 24VDC |
| Type of Built-In Outputs | Transistor |
| Display | LCD display, 4 lines x 16 characters |
| Operating Voltage Range | 20.4...28.8VDC |
| Terminals Type | Screw |
| Relative Humidity | 20...90% without condensation |
| Mounting | 35mm DIN rail or screw fixing (M4x20mm) |
| Degree of Protection | IP20 |
| Dimensions (W x H x D) | 72 x 106 x 59.6mm |
| Operating Temperature | -20°C - +55°C |
| HS Code | 85371091 |
| Certifications | cULus, EAC |
| Conformity | IEC/EN 61131-2 UL508 CSA C22.2 n° 142 |
