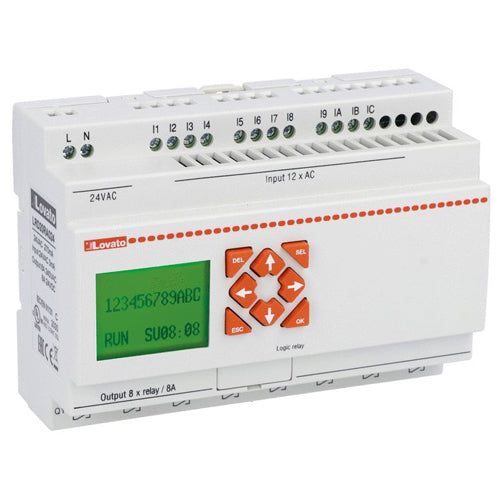

Lovato LRD20RA024, Micro PLC, Base Module, Auxiliary Supply Voltage 24VAC, 12 Inputs/8 Outputs Relay
Regular price
$550.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Micro PLC base modules |
| Max I/O Number | 20 (12 inputs + 8 outputs) up to 44 with LRE modules |
| Rated Supply Voltage | 24VAC |
| Type of Built-In Outputs | Relay |
| Display | LCD display, 4 lines x 16 characters |
| Operating Voltage Range | 20.4...28.8VAC |
| Terminals Type | Screw |
| Relative Humidity | 20...90% without condensation |
| Mounting | 35mm DIN rail or screw fixing (M4x20mm) |
| Degree of Protection | IP20 |
| Dimensions (W x H x D) | 126 x 106 x 59.6mm |
| Operating Temperature | -20°C - +55°C |
| HS Code | 85371091 |
| Certifications | cULus, EAC |
| Conformity | IEC/EN 61131-2 UL508 CSA C22.2 n° 142 |
