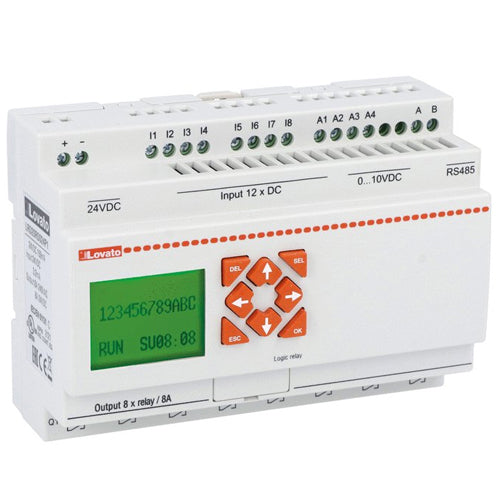

Lovato LRD20RD024P1, Micro PLC, Base Module with Built-In RS485 Communication Port, Auxiliary Supply Voltage 24VDC, 12 Inputs/8 Outputs Relay
Regular price
$544.50
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Micro PLC base modules |
| Max I/O Number | 20 (12 inputs + 8 outputs) up to 44 with LRE modules |
| Rated Supply Voltage | 24VDC |
| Type of Built-In Outputs | Relay |
| Built-In Communication Port | RS485 |
| Display | LCD display, 4 lines x 16 characters |
| Operating Voltage Range | 20.4...28.8VDC |
| Terminals Type | Screw |
| Relative Humidity | 20...90% without condensation |
| Mounting | 35mm DIN rail or screw fixing (M4x20mm) |
| Degree of Protection | IP20 |
| Dimensions (W x H x D) | 126 x 106 x 59.6mm |
| Operating Temperature | -20°C - +55°C |
| HS Code | 85371091 |
| Certifications | cULus, EAC |
| Conformity | IEC/EN 61131-2 UL508 CSA C22.2 n° 142 |
