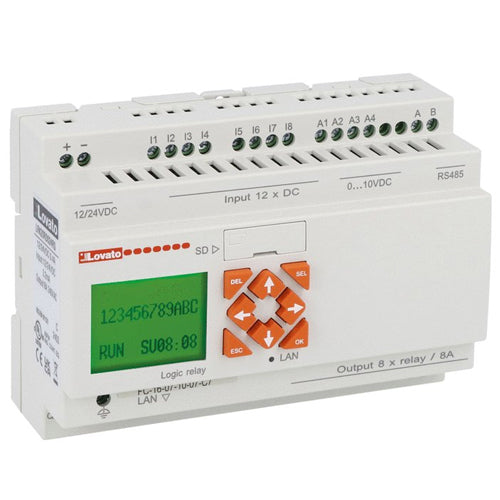

Lovato LRK20RD024RS, Micro PLC, Base Module with Display, Auxiliary Supply Voltage 12/24VDC, 12 Inputs/8 Outputs Relay, Built-In Ethernet and RS485 Port
Regular price
$445.83
Regular price
Sale
$583.33
Sale price
$445.83
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Micro PLC base modules |
| Max I/O Number | 20 (12 inputs + 8 outputs) up to 44 with LRE modules |
| Rated Supply Voltage | 12/24VDC |
| Type of Built-in Outputs | Relay |
| Built-In Communication Port | Ethernet + RS485 |
| Display | LCD display, 4 lines x 16 characters |
| Operating Voltage Range | 10.0...28.8VDC |
| Terminals Type | Screw |
| Relative Humidity | 20...90% without condensation |
| Mounting | 35mm DIN rail or screw fixing (M4x20mm) |
| Degree of Protection | IP20 |
| Dimensions (W x H x D) | 126 x 106 x 59.6mm |
| Operating Temperature | -20°C - +50°C |
| HS Code | 8537101090 |
| Certifications | cULus |
| Conformity | IEC/EN/BS 61131-2 UL 61010-1 UL 61010-2-201 CSA C22.2 No. 61010-1 CSA C22.2 No. 61010-2-201:18 |
