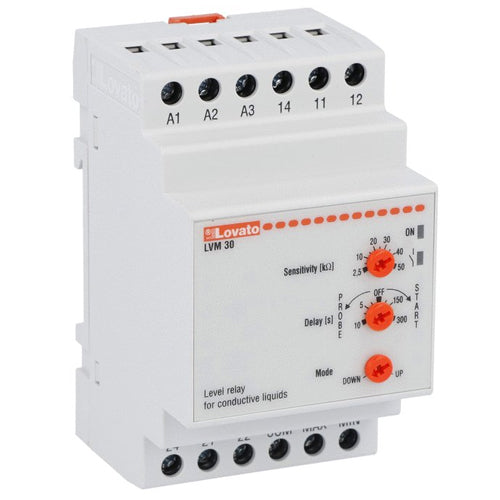

Lovato LVM30A415, Level Monitoring Relay, Modular Version, Dual-Voltage, Emptying or Filling Function, Automatic Resetting, 110...127VAC/280...415VAC
Regular price
$292.03
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Level monitoring relays |
| Type of Liquid | Conductive liquids |
| Functions | Emptying or filling |
| Number of Connectable Electrodes [Nr.] | 3 |
| Sensitivity [kΩ] | 2.5...50 adjustable |
| Number of Relay Outputs | 2 |
| Rated Supply Voltage | 110...127VAC/280...415VAC |
| Type of Installation | Modular DIN rail mounting |
| Contact Arrangement | 2 changeover contact C/O - SPDT |
| Rated Operational Voltage AC (IEC) | 250VAC |
| IEC Conventional Free Air Thermal Current Ith | 8A |
| Indication | 1 green LED for power on 1 red LED for relay state |
| Terminals Type | Screw |
| Operating Temperature | -20°C - +60°C |
| Housing Material | Self-extinguishing polyamide |
| IEC Degree of Protection | IP40 on front / IP20 on terminals |
| Dimensions (W x H x D) | 53.5 x 104.7 x 64.9mm |
| HS Code | 85364900 |
| Certifications | EAC, cULus |
| Compliance | IEC/EN 60255-5 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL508 CSA C22.2 n° 14 |
