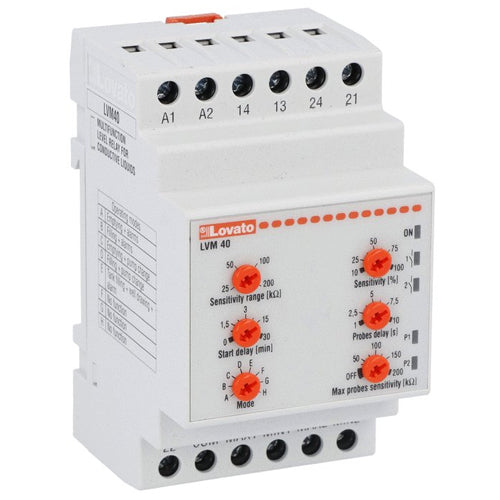

Lovato LVM40A127, Level Monitoring Relay, Modular Version, Single-Voltage, Multifunctions, Automatic Resetting, 110...127VAC
Regular price
$552.74
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Level monitoring relays |
| Type of Liquid | Conductive liquids |
| Functions | Multifunction: emptying and alarms, filling and alarms, emptying with priority start-up change, filling with priority start-up change, well draining and tank filling and alarms |
| Number of Connectable Electrodes [Nr.] | 5 |
| Sensitivity [kΩ] | 2.5...200 adjustable |
| Number of Relay Outputs | 2 |
| Rated Supply Voltage | 110...127VAC |
| Type of Installation | Modular DIN rail mounting |
| Contact Arrangement | 1 changeover contact C/O-SPDT + 1 contact NO-SPST |
| Rated Operational Voltage AC (IEC) | 250VAC |
| IEC Conventional Free Air Thermal Current Ith | 8A |
| Indication | 1 green LED indicator for power on 2 red LEDs for relay state 2 red LEDs for probe state |
| Operating Temperature | -20°C - +60°C |
| Housing Material | Self-extinguishing polyamide |
| IEC Degree of Protection | IP40 on front / IP20 on terminals |
| Dimensions (W x H x D) | 53.5 x 104.7 x 64.9mm |
| HS Code | 85364900 |
| Certifications | EAC, cULus |
| Compliance | IEC/EN 60255-5 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL508 CSA C22.2 n° 14 |
