Lovato M2P0091122060A6, Three Phase Direct-On-Line Starter, Enclosed with Motor Protection Circuit Breaker, 1.6...2.5A (0.75kW at 400V), IP65, Contactor Coil Voltage 220VAC 60Hz
Regular price
$763.38
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
M2P00911... is ideal for starting applications on small machines. It is robust and fully functional for machine control: start, stop, emergency stop, overload protection, short circuit protection and disconnection (isolation function), padlockable in OFF position.

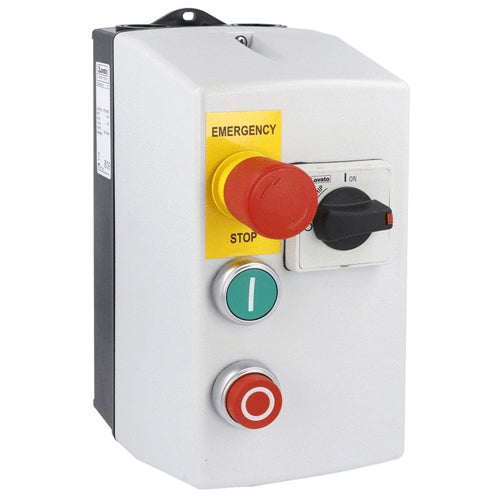

The M2P00911... starters are composed of an IP65 plastic enclosure where the following devices are mounted:
– a motor protection circuit breaker type SM1R... with the short circuit and overload protection function
– a contactor with start / stop function of the motor
– 2 push-buttons for the start and stop
– a mushroom push-button for the emergency stop
– a padlockable rotary actuator, that operates the circuit breaker, for the isolation, with door coupling function.
These starters are easily and quickly installed. They are especially suitable to operate the motor of smaller machines where there is no electrical panel.Inside the enclosure, other components can be added like timers, level relays, protection relays, etc.
| Type of Product | Direct-on-line-starters |
| IEC Operating Current and Power Ie (AC3) 400V [A/Kw] | 2.5A / 0.75kW |
| UL/CSA Horsepower Ratings 480V [HP] | 1 |
| Type | Enclosed with motor protection circuit breaker |
| Type of Coil | AC coil |
| Contactor Coil Vvoltage | 220VAC 60Hz |
| Relay Adjusment Range | 1.6-2.5A |
| UL Degree of Protection | Type 1, 12K, 4, 4X |
| IEC Degree of Protection | IP65 |
| Operating Temperature | -25°C - +60°C |
| HS Code |
85371098 |
| Certifications | EAC |
| Conformity |
IEC/EN 60947-1 IEC/EN 60947-4- |
