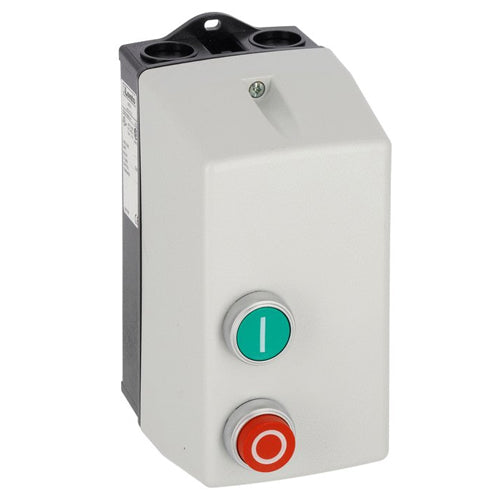

Home » Lovato M2P0251246060B2, Three Phase Direct-On-Line Starter, 17...23A (11kW at 400V), IP65, Contactor Coil Voltage 460VAC 60Hz, Non-Metallic Enclosure, With Thermal Overload Relay, With Start and Stop/Reset Pushbuttons
Lovato

Lovato M2P0251246060B2, Three Phase Direct-On-Line Starter, 17...23A (11kW at 400V), IP65, Contactor Coil Voltage 460VAC 60Hz, Non-Metallic Enclosure, With Thermal Overload Relay, With Start and Stop/Reset Pushbuttons

In stock
SKU: M2P0251246060B2
$546.82
Rated voltage
Phase
Thermal trip adjustment range

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Direct-on-line-starters
IEC Operating Current and Power Ie (AC3) 400V [A/Kw] 23A / 11kW
UL/CSA Horsepower Ratings 480V [HP] 15
Type Enclosed with thermal overload relay
Type of Coil AC coil
Type of Pushbutton With Start-Stop/Reset buttons
Contactor Coil Vvoltage 460VAC 60Hz
Starter Enclosure Standard Supplied M2PA
Contactor Standard Supplied BF2510A
Thermal Relay Standard Supplied RF382300
Relay Adjusment Range 17-23A
UL Degree of Protection Type 1, 12K, 4, 4X
IEC Degree of Protection IP65
Operating Temperature -25°C - +60°C
HS Code 85371098
Certifications cULus, CSAus, EAC
Conformity IEC/EN 60947-1
IEC/EN 60947-4-1
UL508 CSA C22.2 n° 14
