Home » Lovato ME070FD024, Electronic Direct-On-Line Starter, 7A, Integrated Motor Thermal Protection, Operational Voltage Ue ≤500VAC, Auxiliary and Control Supply Voltage 24VDC
Lovato

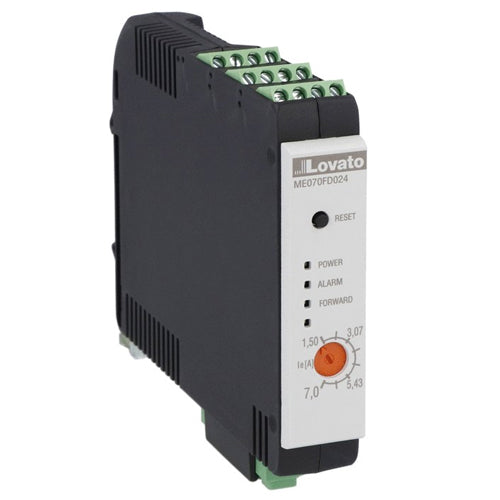

Lovato ME070FD024, Electronic Direct-On-Line Starter, 7A, Integrated Motor Thermal Protection, Operational Voltage Ue ≤500VAC, Auxiliary and Control Supply Voltage 24VDC

In stock
SKU: ME070FD024
$423.84
Control voltage
Thermal trip adjustment range

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Electronic motor starter
Functions Direct-On-Line starter
Safe Torque Off (STO) Safety Function No
Thermal Protection Integrated, class 10A
IEC Operating Current and Power Ie (AC3) 400V [A/Kw] 7A
Type Electronic direct-on-line starter, 7A, integrated motor thermal protection
Rated Operational Voltage  40...500V
Auxiliary Supply Voltage 24VDC
Thermal Trip Adjustment Range  1.5…7A
Terminals Type Screw
Fixing 35mm DIN rail (IEC/EN/BS 60715)
Frontal IP Degree IP20
Operating Temperature -25°C - +70°C
HS Code 85365003
Certifications cULus
Conformity IEC/EN/BS 609474-2
UL 60947-4-2
CSA C22.2 n° 60947-4-2
