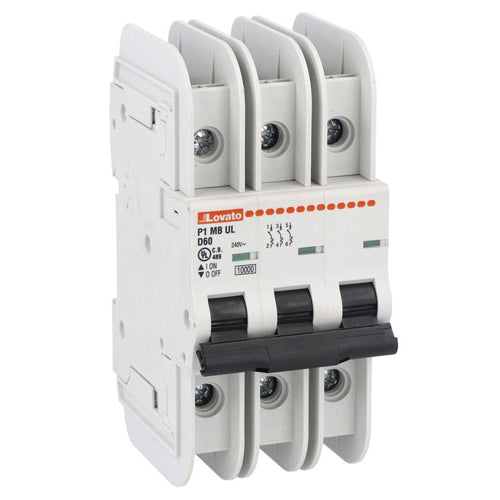

Lovato P1MBUL3PD60, Miniature Circuit Breaker, Thermal and Magnetic Trip Type, Three Pole (3P), 10kA, 3 Modules, D-Curve Characteristic, 60A, Rated Voltage 240VAC (UL 489)

In stock
SKU: P1MBUL3PD60
Regular price $223.31
Ampere rating
Pole
Rated voltage

Use this text to encourage communication or promote sharing on social networks.

You can also add links

These devices comply with the UL 489 standard, mostly used in the North American markets. They are designed to protect feeder circuits, the part of the system from the network supply point to the protection device for a branch circuit.
They can also be used on the international market thanks to compliance with the IEC/EN/BS 60947-2 standard.
They have characteristics of tripping instantaneously defined as follows:
– C-curve: instantaneous trip 5...10 times In for inductive loads (mixed loads, resistive and inductive with low inrush current)
– D-curve: instantaneous trip 10...14 times In for highly inductive loads (loads with high inrush and current such as motors).

Type of Product Miniature circuit breakers
Number of DIN Modules 3
Number of Poles Three Pole (3P)
Tripping Curve D
Rated Current (In) 60A
Compliance IEC / UL489
Rated Insulation Voltage Ui 440V
Rated Operational Voltage Ue 230/400 VAC
Rated Operational Voltage AC (UL) 240 VAC
Short Circuit Rating (IEC) 10kA
Fixing 35mm DIN rail
Frontal IP Degree IP20
Operating Temperature -40°C - +70°C
HS Code 85362010
Certifications cULus, EAC
Conformity UL489
IEC/EN 60947-2
