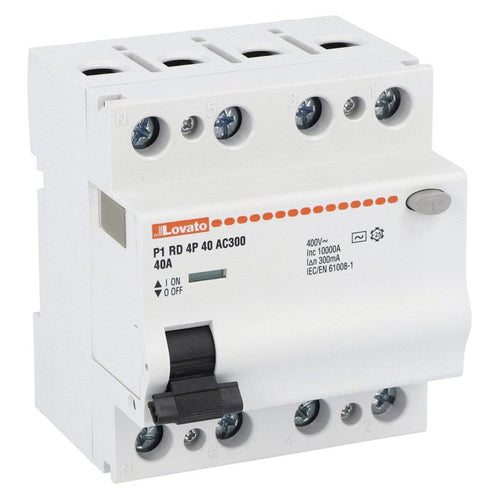

Lovato P1RD4P40AC300, Residual Current Operated Circuit Breaker, Four Pole (4P), Type AC, 4 Modules, 40A, 300mA
Regular price
$260.38
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These RCCBs are intended for the protection of people against indirect contact (electric shock) and of installations against fire hazards due to a persistent earth/ground fault current. Specifically to prevent electric shock, RCCBs must be rated with a rated residual current not exceeding 30mA so that these devices trip in the case of earth/ground fault only. They usually are connected in series with thermal-magnetic breakers which assure short circuit and overcurrent protection too.
| Type of Product | Residual current operated circuit breakers |
| Number of DIN Modules | 4 |
| Number of Poles | Four Pole (4P) |
| Residual Operation Characteristic | AC |
| Rated Residual Current I∆n [mA] | 300 |
| Rated Current In [A] | 40 |
| Compliance | IEC |
| Rated Insulation Voltage Ui | 400V |
| Rated Operational Voltage AC (IEC) | 230/400 VAC |
| Short Circuit Rating (IEC) | 10kA |
| Fixing | 35mm DIN rail |
| Frontal IP Degree | IP20 |
| Operating Temperature | -35°C - +70°C |
| HS Code | 85363030 |
| Certifications | TÜV-Rheinland, EAC |
| Conformity | IEC/EN/BS 61008-1 |
